• CSDG#: 4412
• PRICE: Call
• KW: 100 KW
• CONDITION: Used
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Ford
• ENGINE MODEL: WSG1068

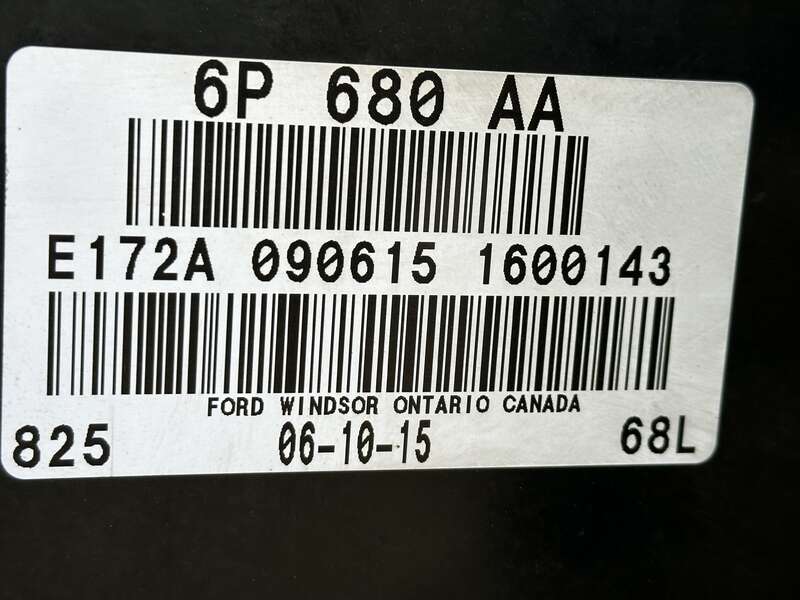

• ENGINE S/N: E172A0906151600143
• PACKAGE MODEL: GGHH
• PACKAGE S/N: G150851089
• HP: 176 HP
• VOLTAGE: 120/208
• ENCLOSURE: Weather enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Natural Gas Generator

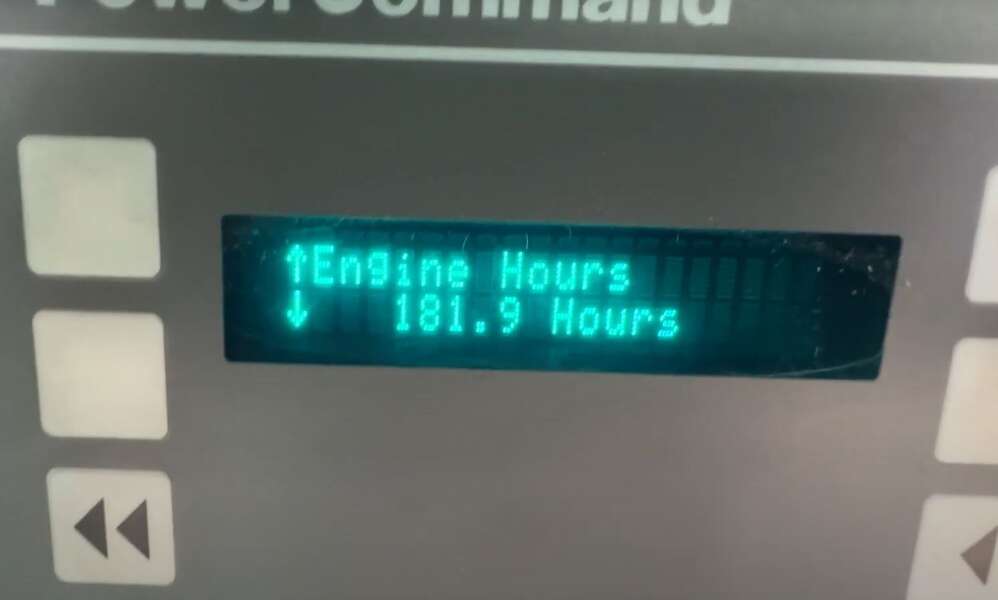

• HOURS: 181
• YEAR: 2015
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Certified

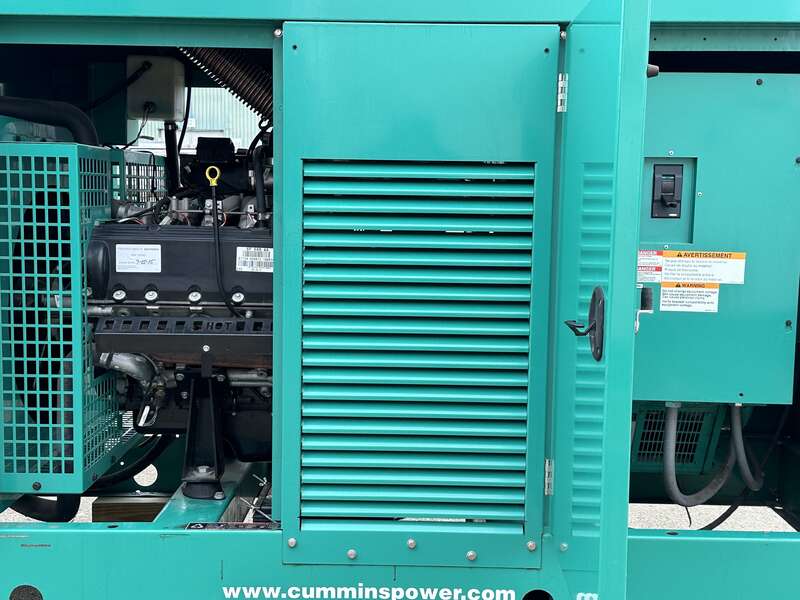

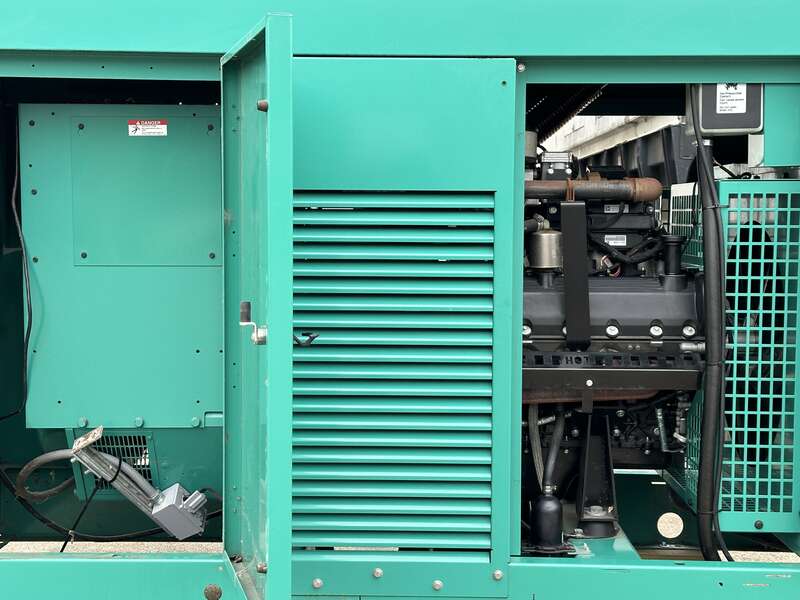

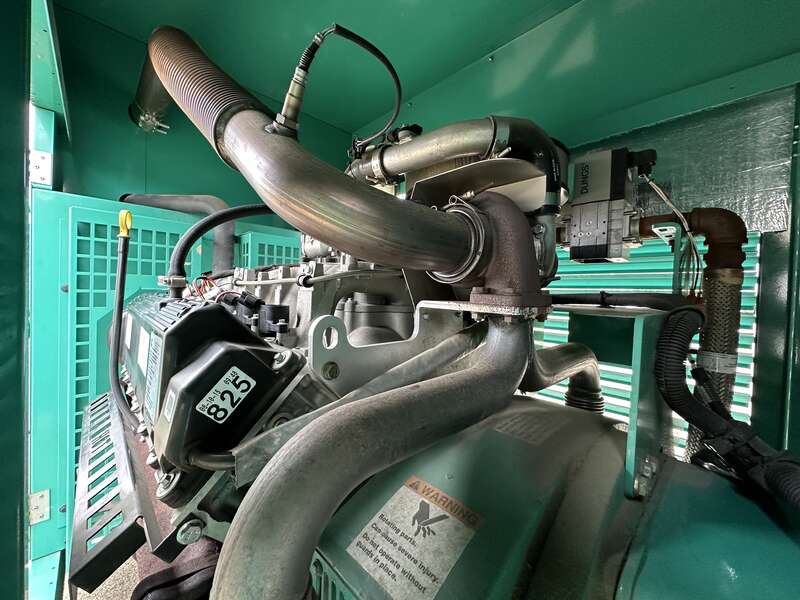

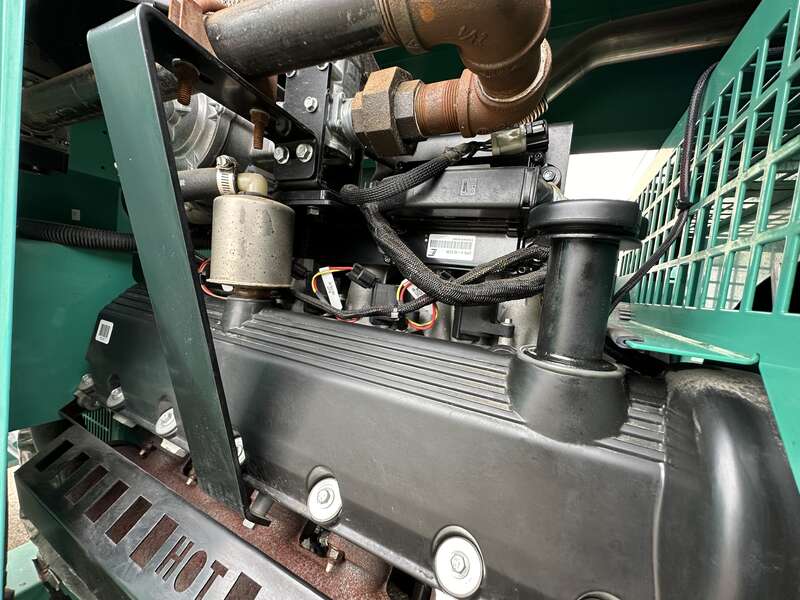

Cummins 100 kW standby natural gas / propane generator set, model GGHH, SN-G150851089. Ford WSG-1068 engine rated 176 HP at 1800 RPM, SN-E172A0906151600143, EPA certified. 3/60/120/208V, 12 lead reconnectable to other voltages. 400 Amp main-line circuit breaker. PMG - permanent magnet generator. Sens battery charger. Coolant heater. UL listed stationary engine generator assembly. No battery. Sound attenuated enclosure. 181 Hrs. Yr 2015. Overall dimensions 43W x 105L x 78H, 3500 lbs. Passed load test 2/5/2024 and PM serviced. FOB Waukesha, WI

Download Documents

Cummins-100-kW-GGHH-Spec-and-Data-Sheet.pdf

Cummins-GGHH-GGHG-Installation-Manual.pdf

Cummins-100kW-GGHH-opereators-manual.pdf

Cummins-GGHH-SN-G150851089-load-test-report-and-inspection-checklist.pdf
