New Cummins DQFAD QST30-G5 NR2 Diesel Generator, EPA Tier 2, 1000 KW
- CSDG#: 3471
- PRICE: Call
- KW: 1000 KW
- CONDITION: New
- MANUFACTURER: Cummins
- ENGINE MANUFACTURER: Cummins
- ENGINE MODEL: QST30-G5 NR2
- ENGINE S/N: 37291869
- PACKAGE MODEL: DQFAD
- PACKAGE S/N: K230288160
- HP: 1490 HP
- VOLTAGE: 277/480

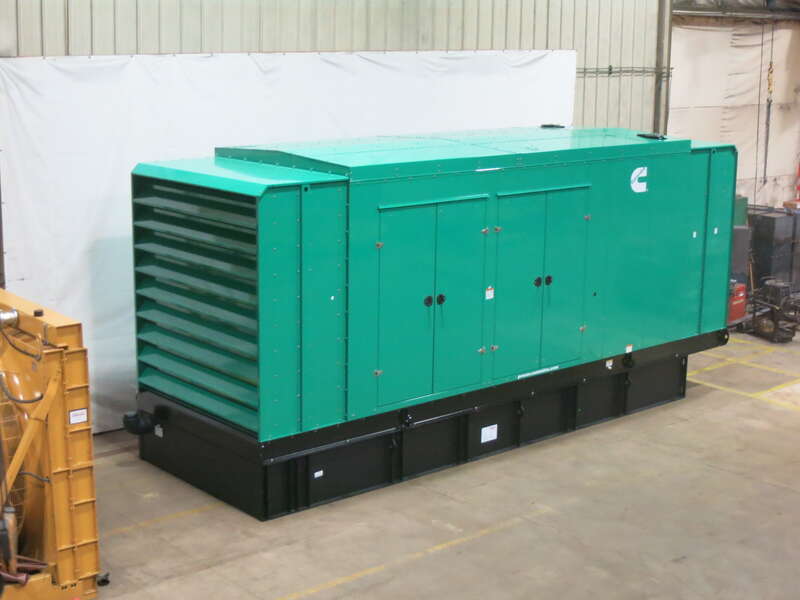

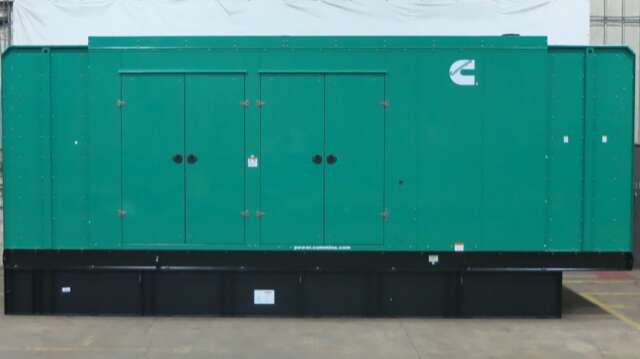

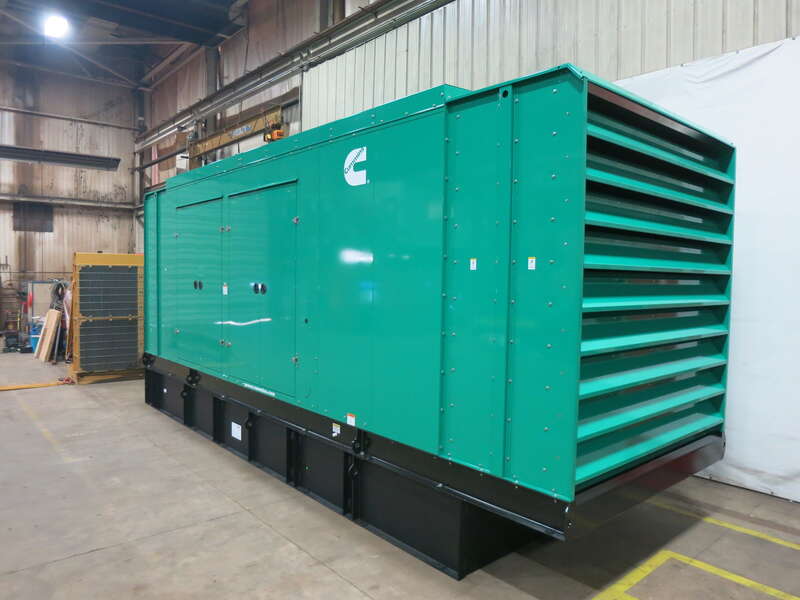

- ENCLOSURE: Sound attenuated enclosure
- CATEGORY: Generator Set
- SUB-CATEGORY: Diesel Generator
- YEAR: 2023
- LOCATION: Waukesha, WI
- EMISSIONS: EPA Tier 2

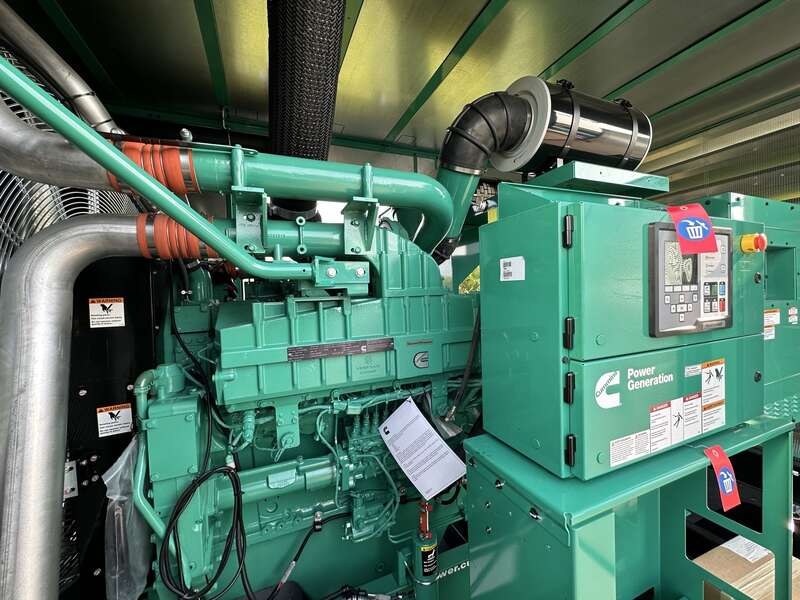

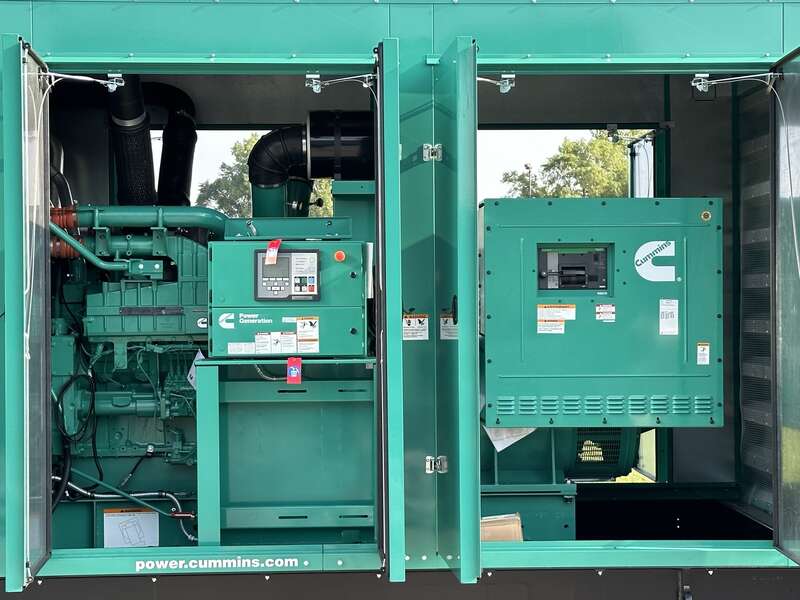

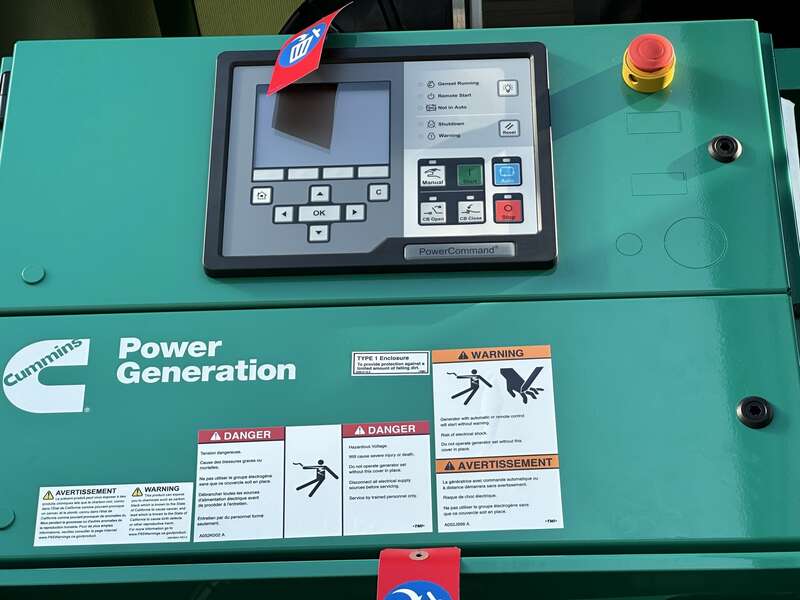

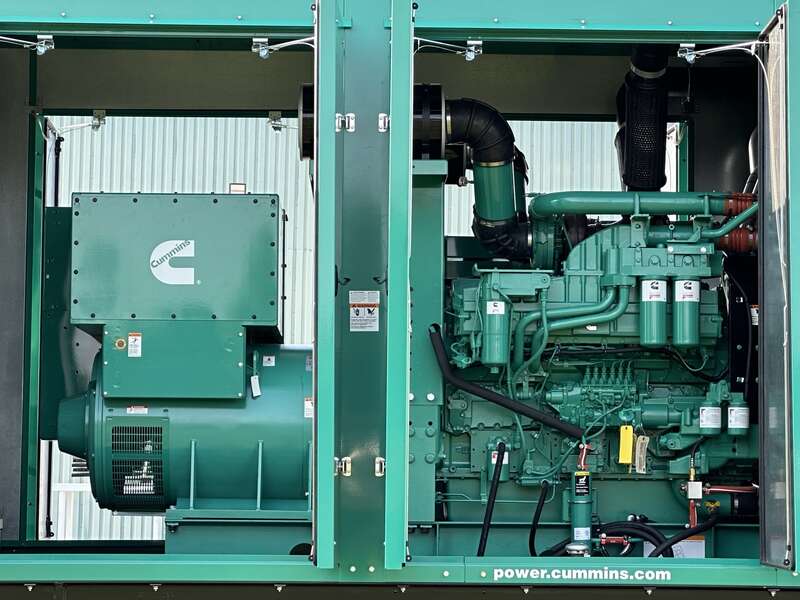

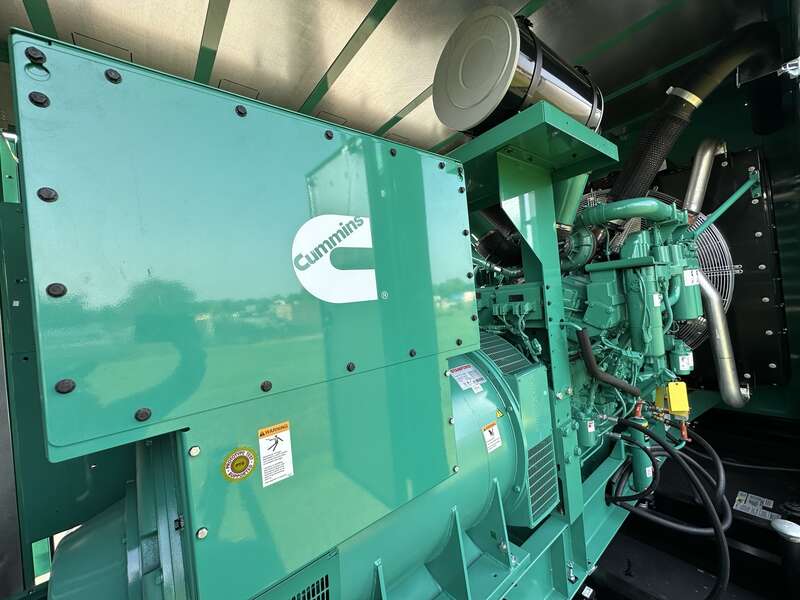

New Cummins 1000 kW standby (900 kW prime) diesel generator set, model DQFAD, SN-K230288160. Cummins QST30-G5 NR2 engine rated 1490 HP at 1800 RPM, SN-37291869, EPA Tier 2 emissions. 3/60/277/480V, 4 wire non-reconnectable to other voltages. 1600 Amp 100% rated main-line circuit breaker. PMG permanent magnet generator. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. PowerCommand 3.3 paralleling digital control panel. Sens battery charger 10 amp 120/208/240V. Dual coolant heaters 208/240/480V. Sound attenuated level 2 enclosure. 2000 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2023. Cummins 2 Yr 1000 Hr limited warranty. Overall dimensions 101W x 327L x 143H, 35,202 lbs. FOB Waukesha, WI
