• CSDG#: 2426
• PRICE: Call
• KW: 800 KW
• CONDITION: New
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins
• ENGINE MODEL: QSK23-G7 NR2
• ENGINE S/N: 85005890
• PACKAGE MODEL: DQCC
• PACKAGE S/N: F190580055
• HP: 1220 HP
• VOLTAGE: 277/480
• ENCLOSURE: Sound attenuated enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• YEAR: 2019
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 2

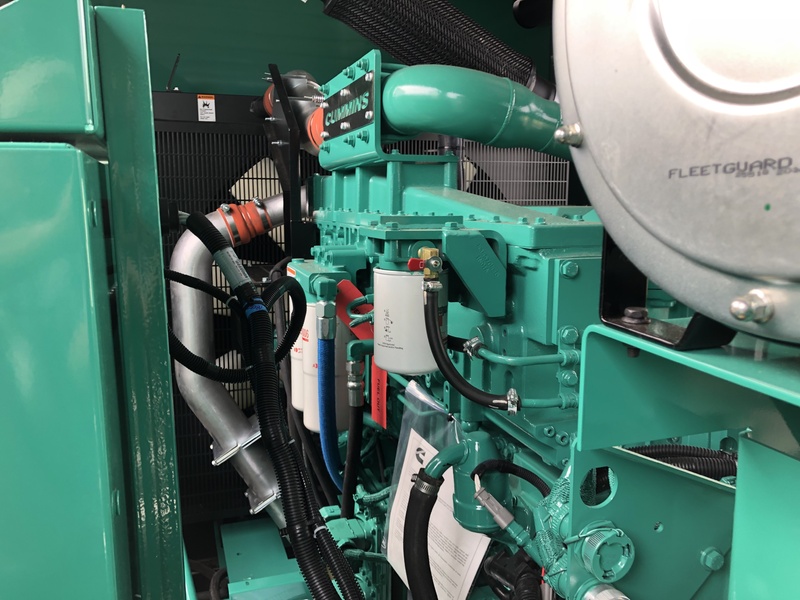

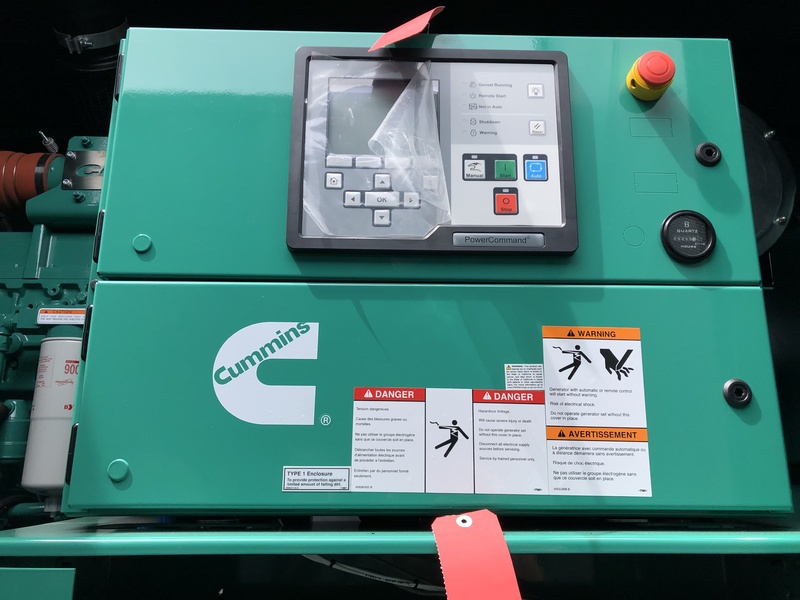

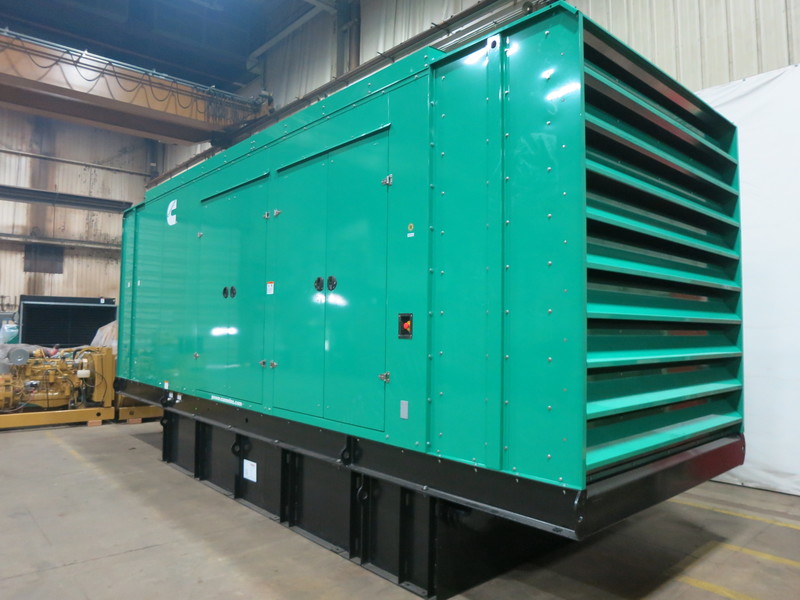

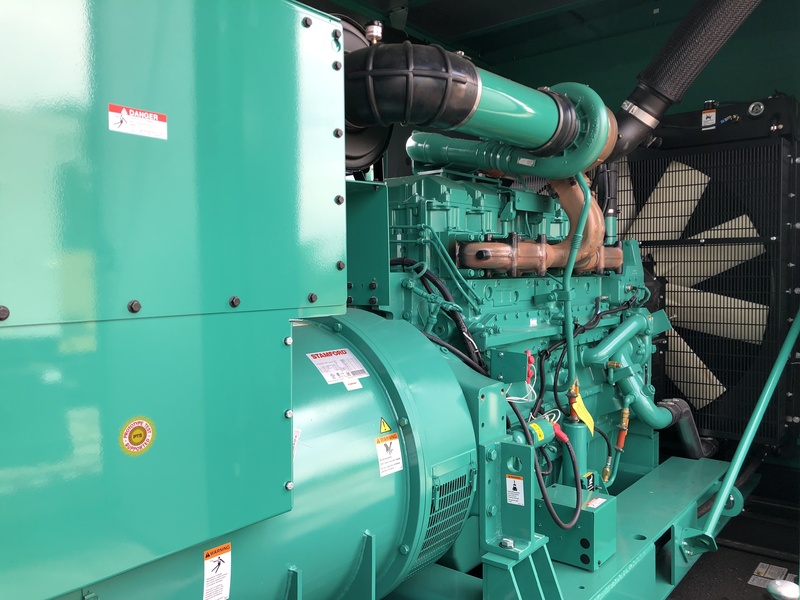

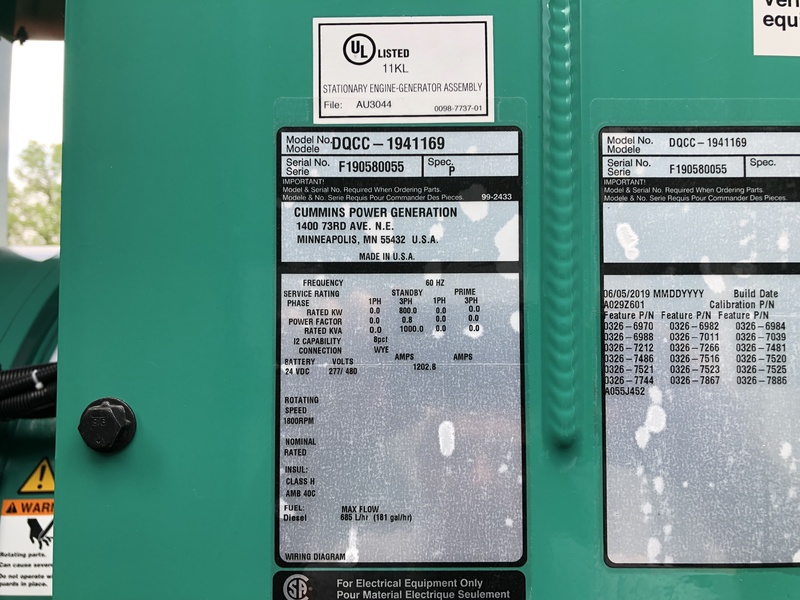

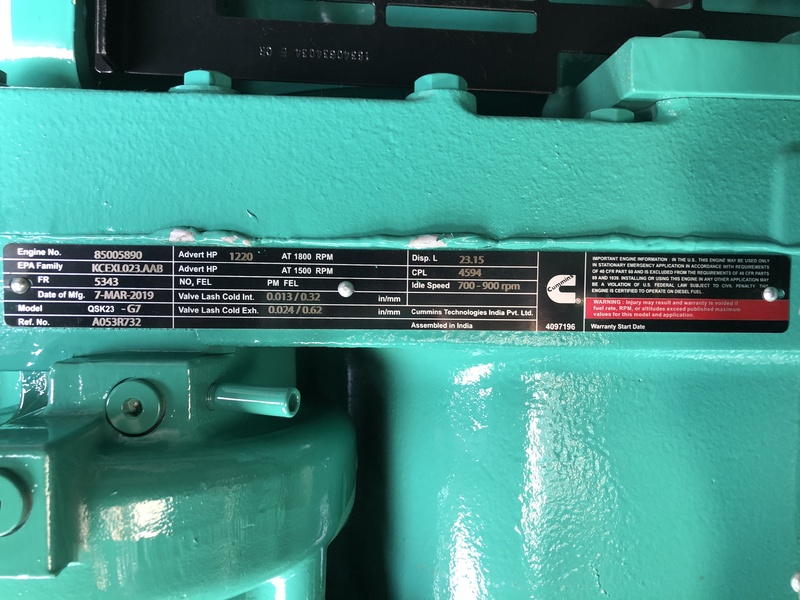

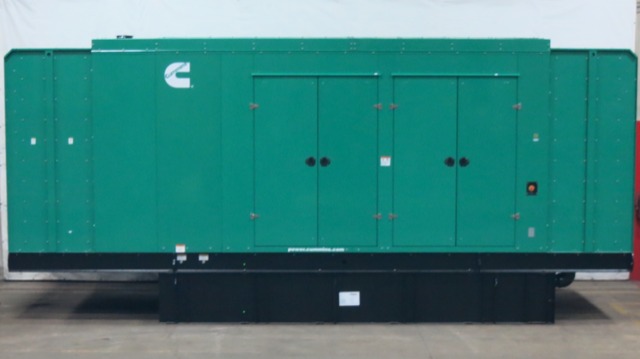

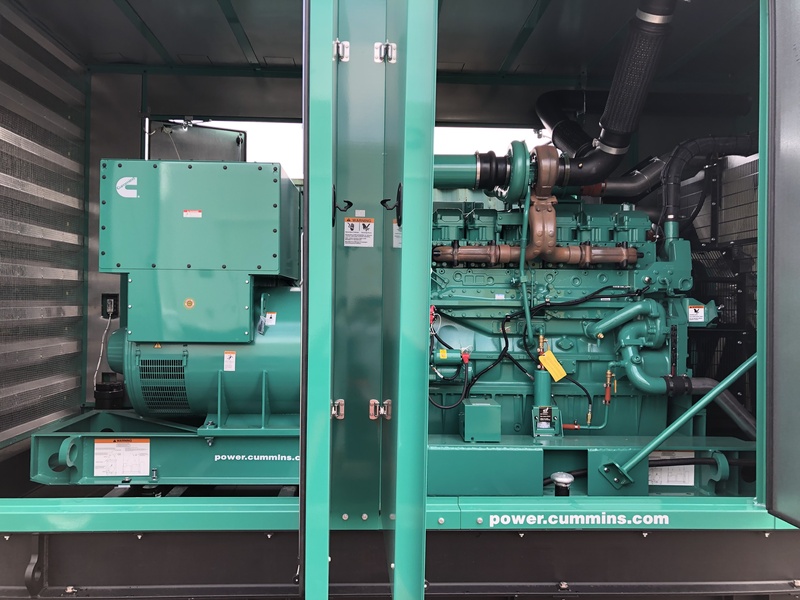

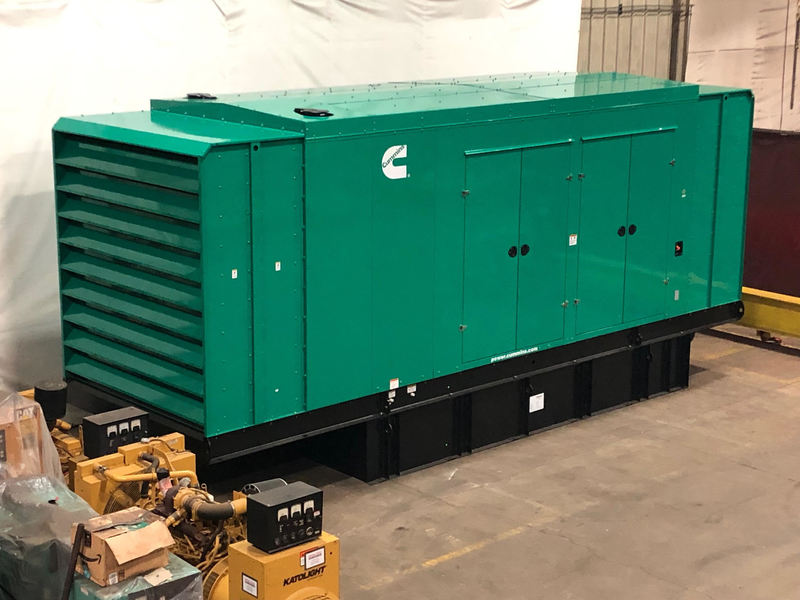

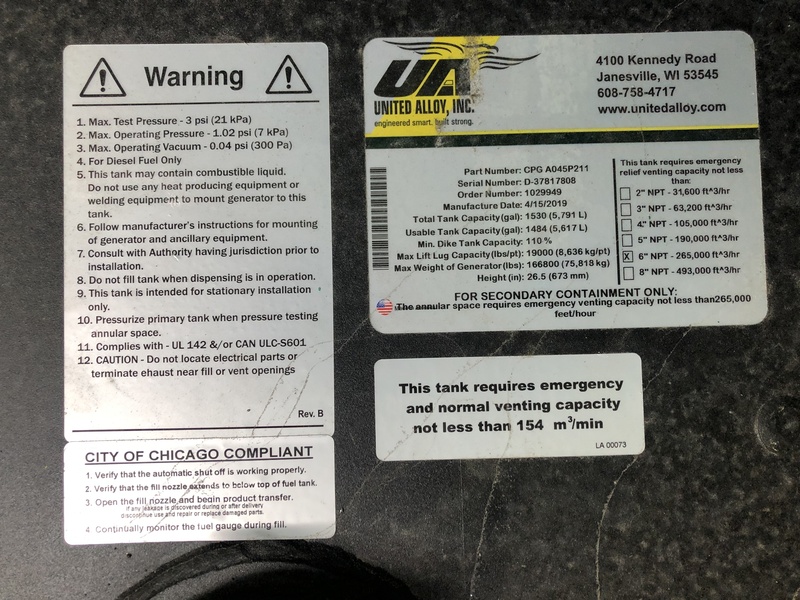

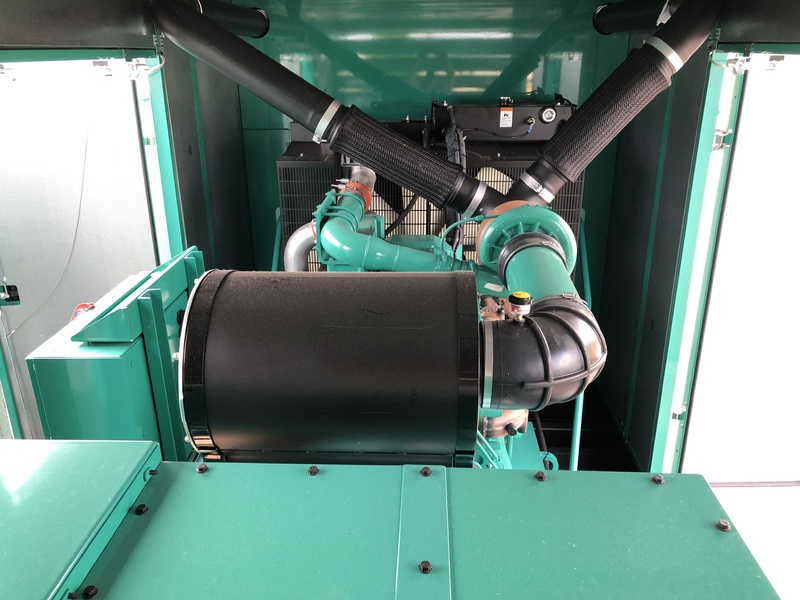

New Cummins 800 kW standby (725 kW prime) diesel generator set, model DQCC-1941169, SN-F190580055. Cummins QSK23-G7 engine rated 1220 HP at 1800 RPM, SN-85005890, EPA Tier 2 emissions. 3/60/277/480V, 4 wire non-reconnectable to other voltages. 1200 Amp 100% rated main-line circuit breaker. PMG permanent magnet generator. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. Sens battery charger 10 amp 120/208/240V. Coolant heater 208/240/480V. PowerCommand 2.3 digital control panel. RS485 annunciator. Sound attenuated level 2 enclosure. 1484 gallon UL142 sub-base fuel tank with secondary containment, City of Chicago compliant. Batteries and start up not included. 0 Hours. Year 2019. 2 Yr 1000 Hr warranty. Overall dimensions 102W x 315L x 143H, 31,139 Lbs. FOB Waukesha, WI

Download Documents

CSDG-800-kW-DQCC-2019-Submittal.pdf

Cummins-DQCC-QSK23-engine-spec-sheet.pdf

Cummins-DQCC-spec-sheet.pdf
