• CSDG#: 2462
• PRICE: Call
• KW: 500 KW
• CONDITION: New
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins

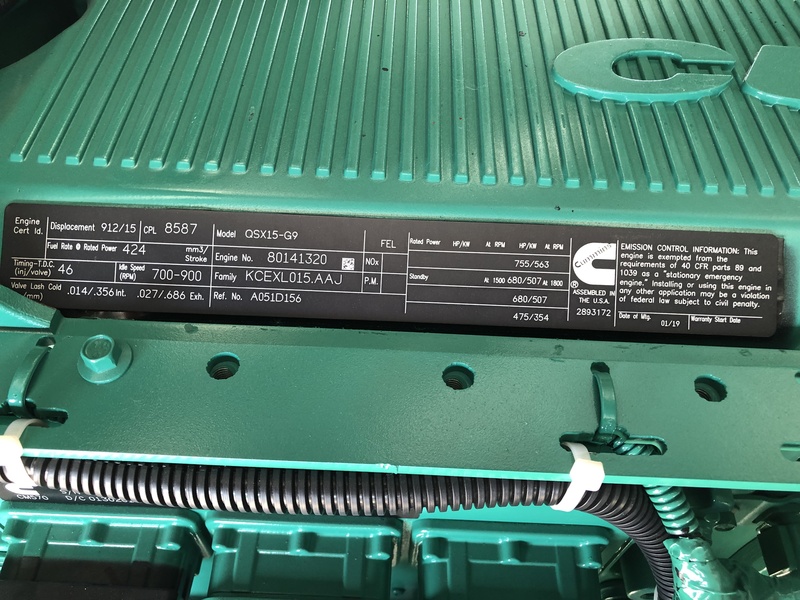

• ENGINE MODEL: QSX15-G9 NR2
• ENGINE S/N: 80141320
• PACKAGE MODEL: DFEK
• PACKAGE S/N: F190584279
• HP: 755 HP
• VOLTAGE: 277/480

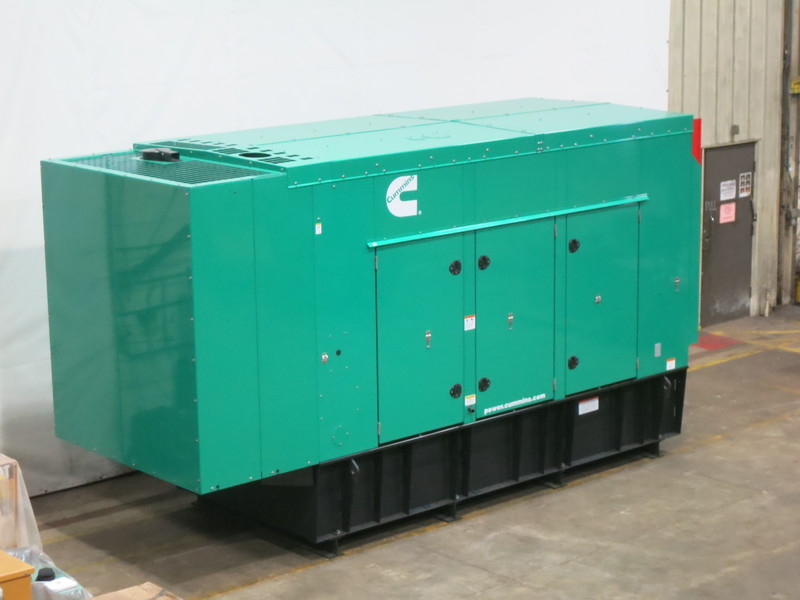

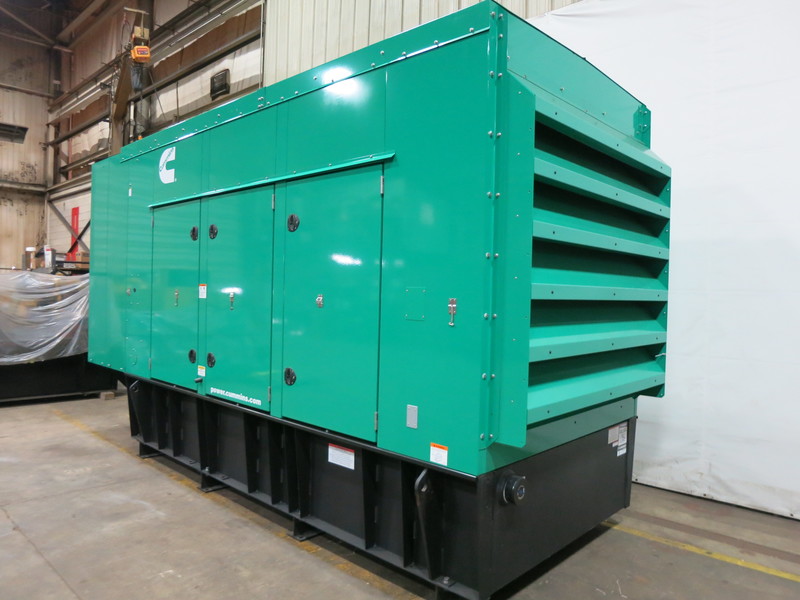

• ENCLOSURE: Sound attenuated enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• YEAR: 2019
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 2

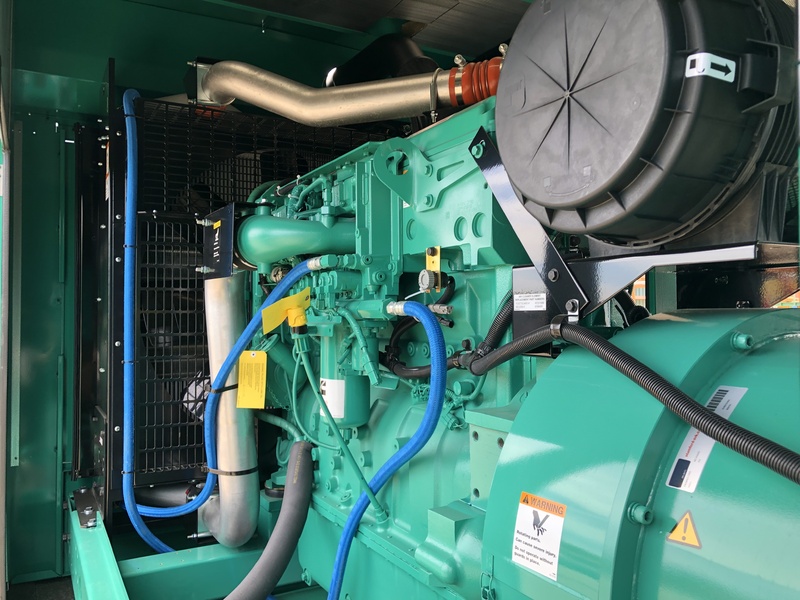

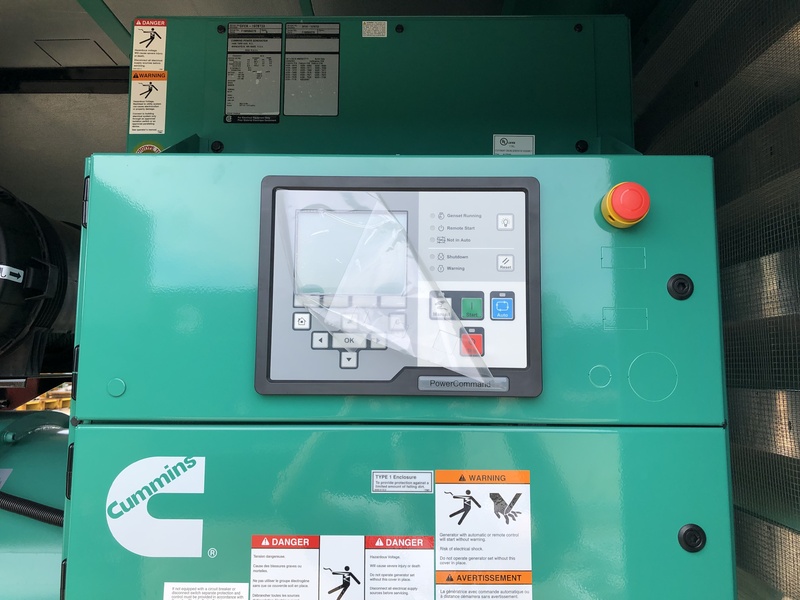

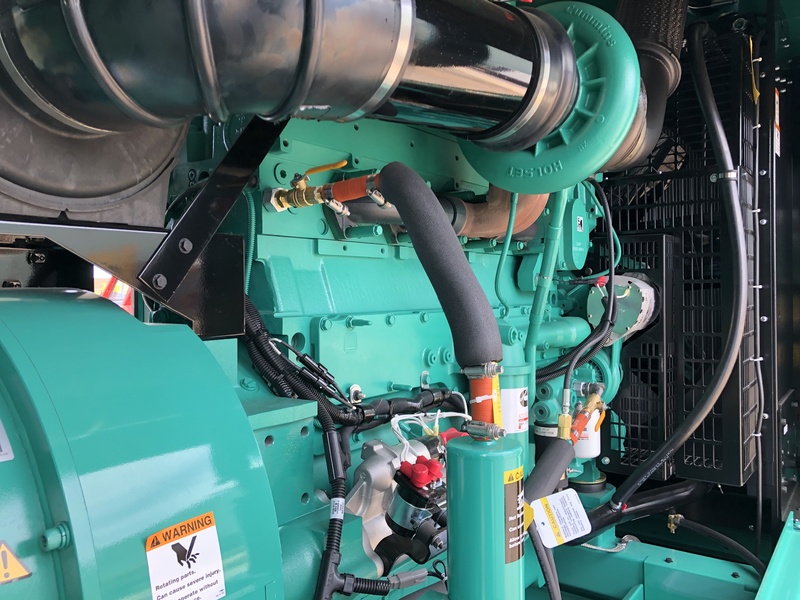

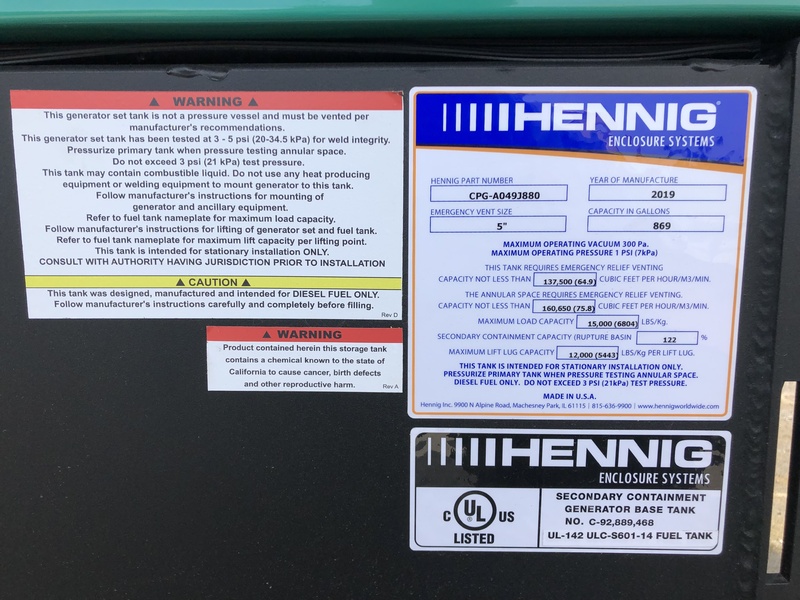

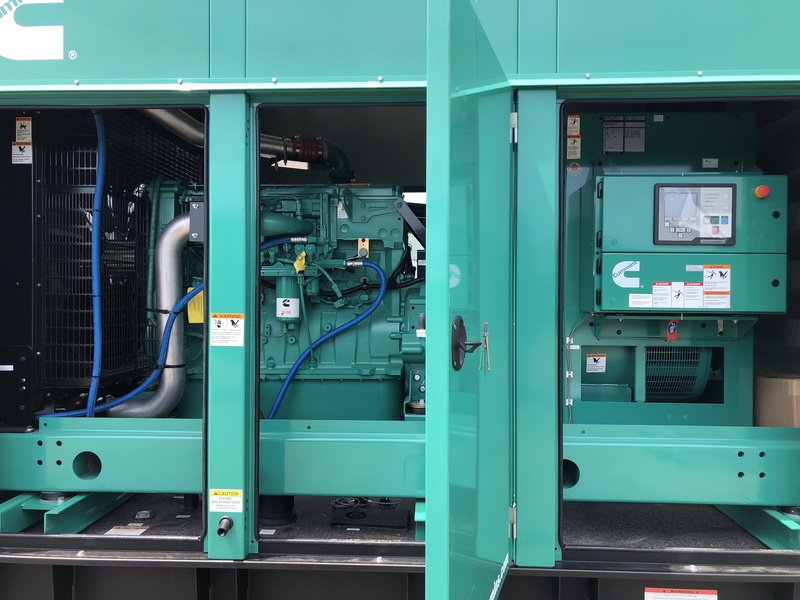

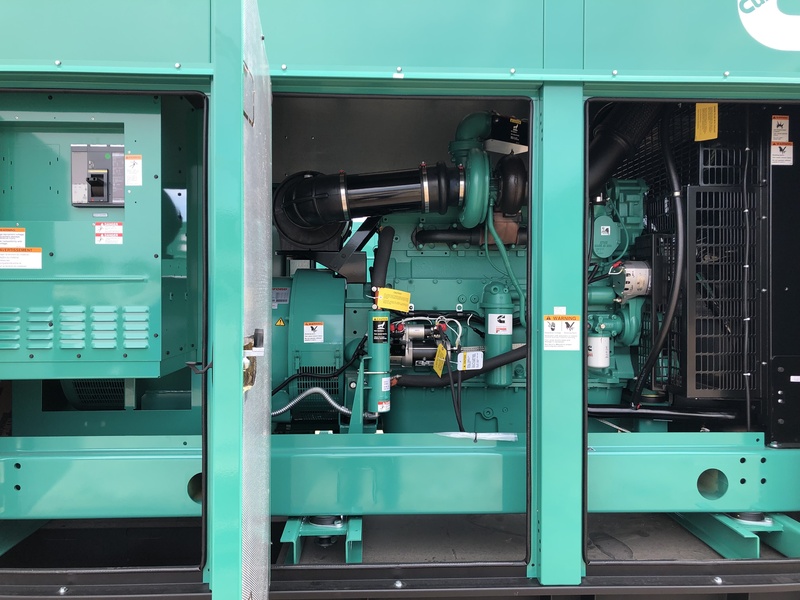

New Cummins 500 kW standby (455 kW prime) diesel generator set, model DFEK-1978733, SN-F190584278. Cummins QSX15-G9 engine rated 755 HP at 1800 RPM, SN-80141320, EPA Tier 2 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 800 Amp 100% rated main-line circuit breaker. PMG permanent magnet generator. 515 kW oversized generator end. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. Sens battery charger 10 amp 120/208/240V. Coolant heater 208/240/480V. PowerCommand 2.3 digital control panel. RS485 annunciator. Sound attenuated level 2 enclosure. 869 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2019. 2 Yr 1000 Hr warranty. Overall dimensions 86W x 222L x 117H, 17,996 Lbs. FOB Waukesha, WI

Download Documents

Cummins-DFEK-spec-sheet.pdf

CSDG-500-kW-DFEK-2019-Submittal.pdf
