• CSDG#: 2307
• PRICE: Call
• KW: 500 KW
• CONDITION: New
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins

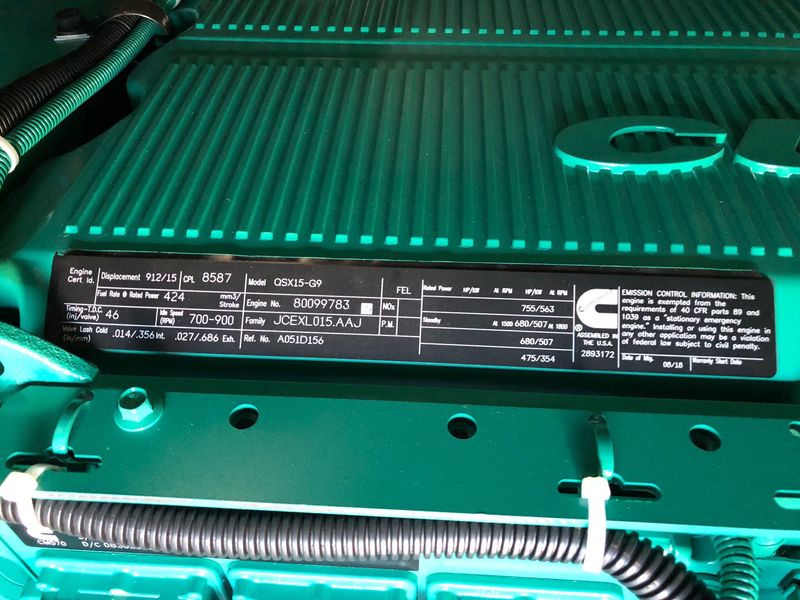

• ENGINE MODEL: QSX15-G9 NR2
• ENGINE S/N: 80099783

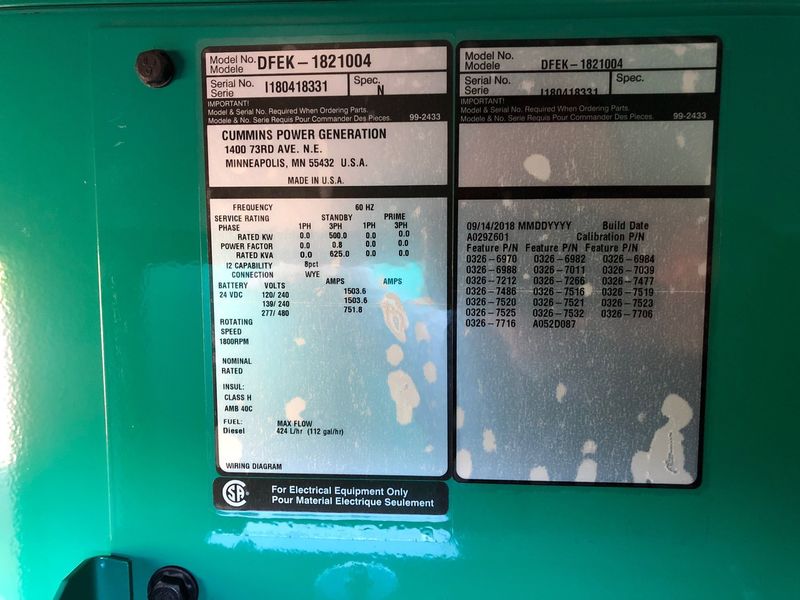

• PACKAGE MODEL: DFEK
• PACKAGE S/N: I180418331
• HP: 755 HP
• VOLTAGE: 277/480
• ENCLOSURE: Sound attenuated enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• YEAR: 2018
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 2

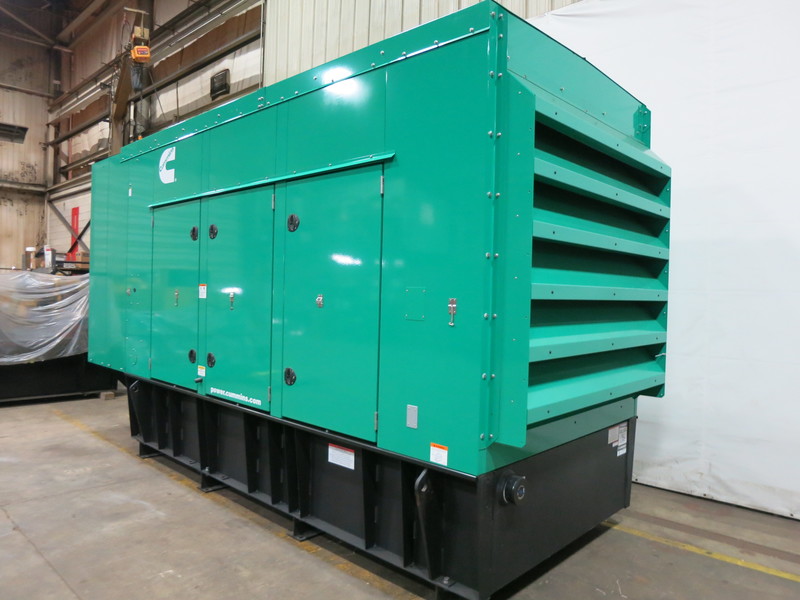

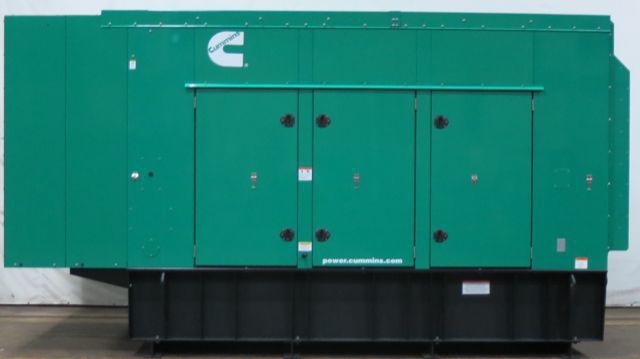

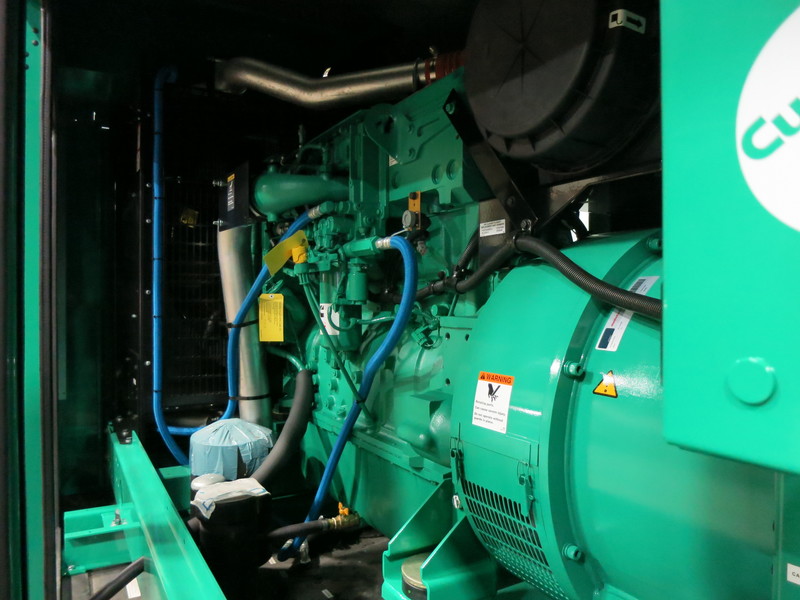

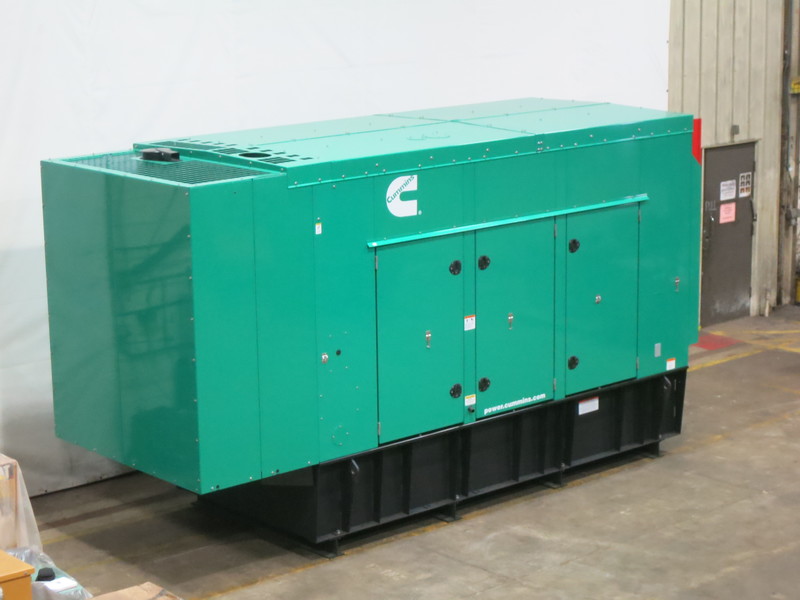

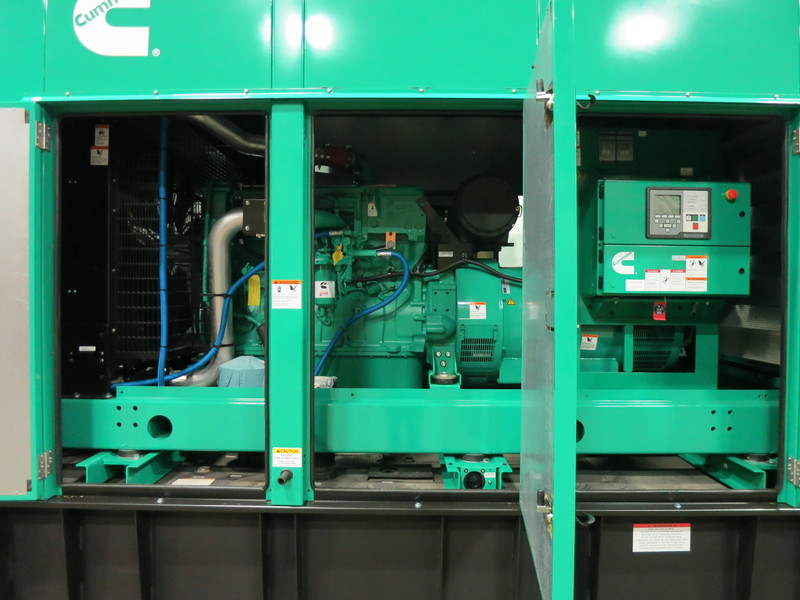

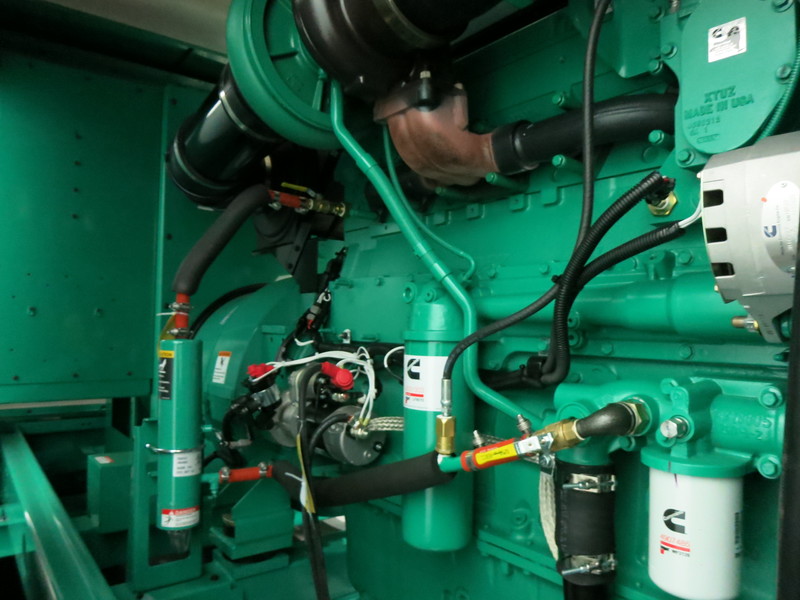

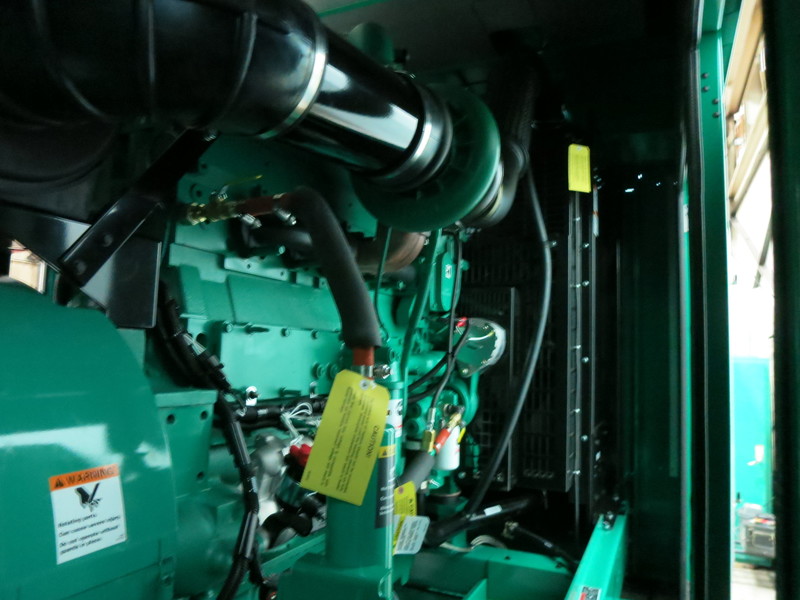

New Cummins 500 kW standby (455 kW prime) diesel generator set, model DFEK, SN-I180418331. Cummins QSX15-G9 engine rated 755 HP at 1800 RPM, SN-80099783, EPA Tier 2 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 800 Amp 100% rated main-line circuit breaker. PMG permanent magnet generator. 660 kW oversized generator end. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. Sens battery charger 10 amp 120/208/240V. Coolant heater 208/240/480V. PowerCommand 2.3 digital control panel. RS485 annunciator. Sound attenuated level 2 enclosure w/150 MPH wind rating. 869 gallon UL142 sub-base fuel tank with secondary containment, 5 gallon fill/spill box, meets FL and MI requirements. Batteries and start up not included. 0 Hours. Year 2018. 2 Yr 1000 Hr warranty. Overall dimensions 86W x 222L x 124H, 17,996 Lbs. FOB Waukesha, WI

Download Documents

Cummins-DFEK-QSX15-g9-engine-EPA-tier-2-emissions-spec-sheet.pdf

Cummins-DFEK-QSX15-g9-engine-spec-sheet.pdf

New-Cummins-500-kW-DFEK-submittal.pdf
