• CSDG#: 3556
• PRICE: Call
• KW: 30 KW
• CONDITION: New
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins

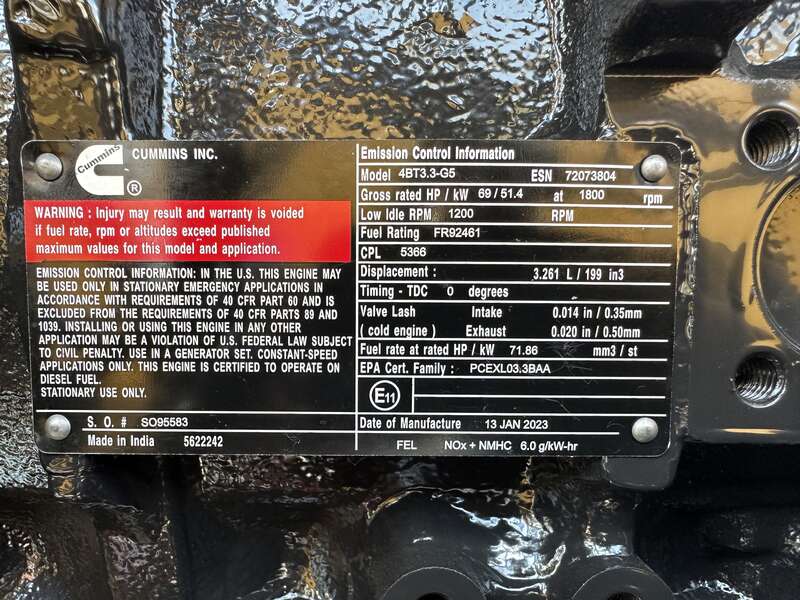

• ENGINE MODEL: 4BT3.5-G5
• ENGINE S/N: 72073804
• PACKAGE MODEL: C30D6C

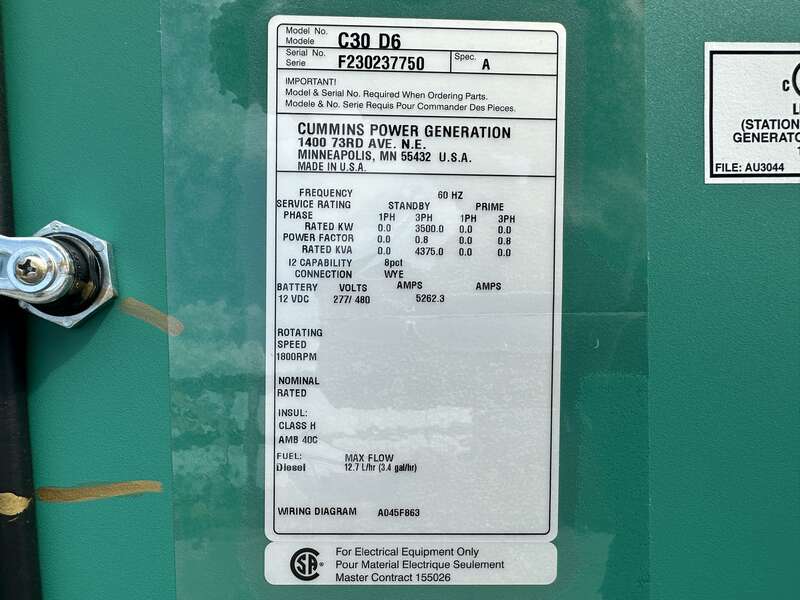

• PACKAGE S/N: F230237750
• HP: 69 HP
• VOLTAGE: 277/480
• ENCLOSURE: Sound attenuated enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• YEAR: 2023
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 3

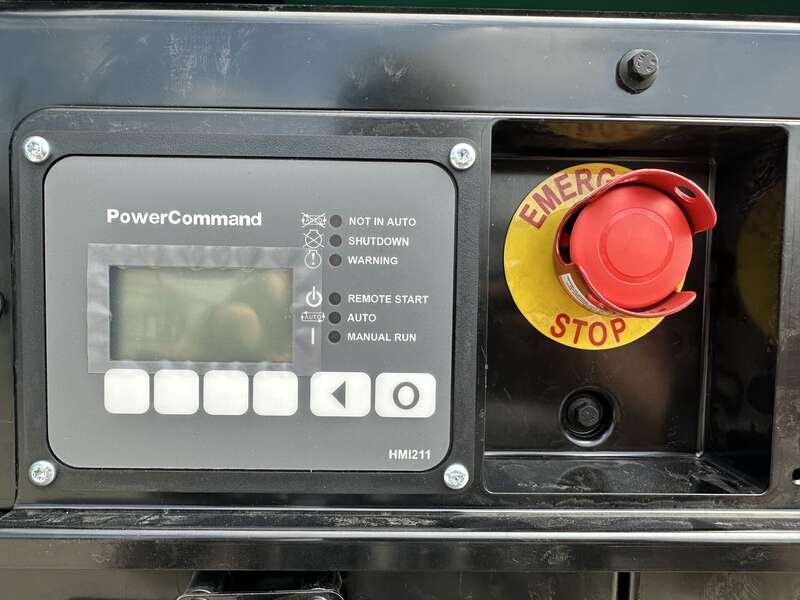

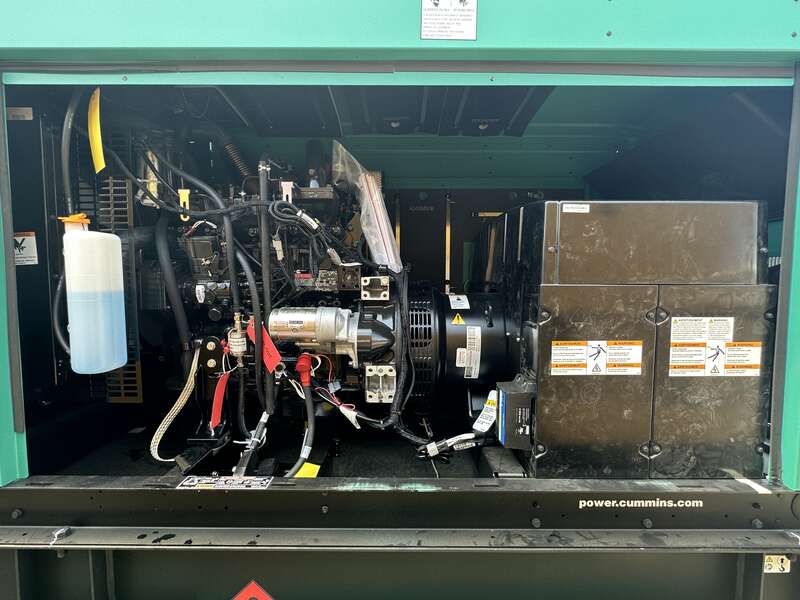

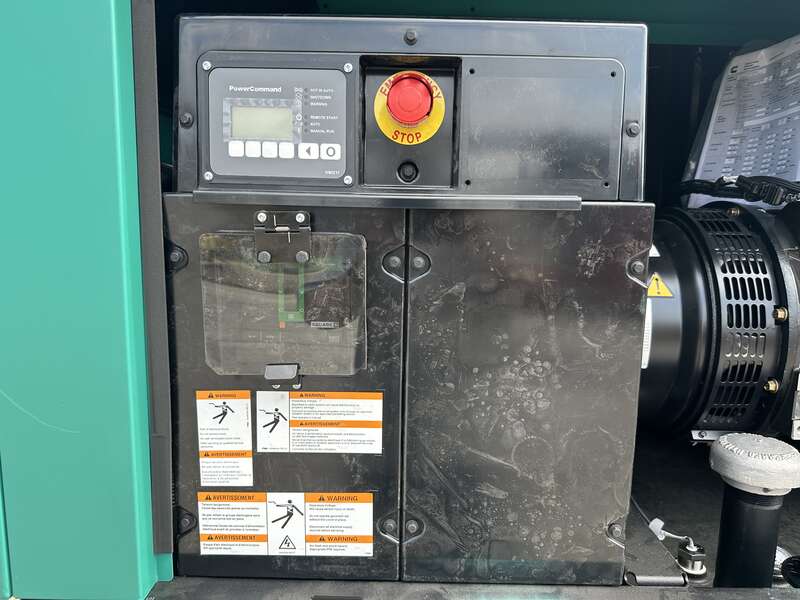

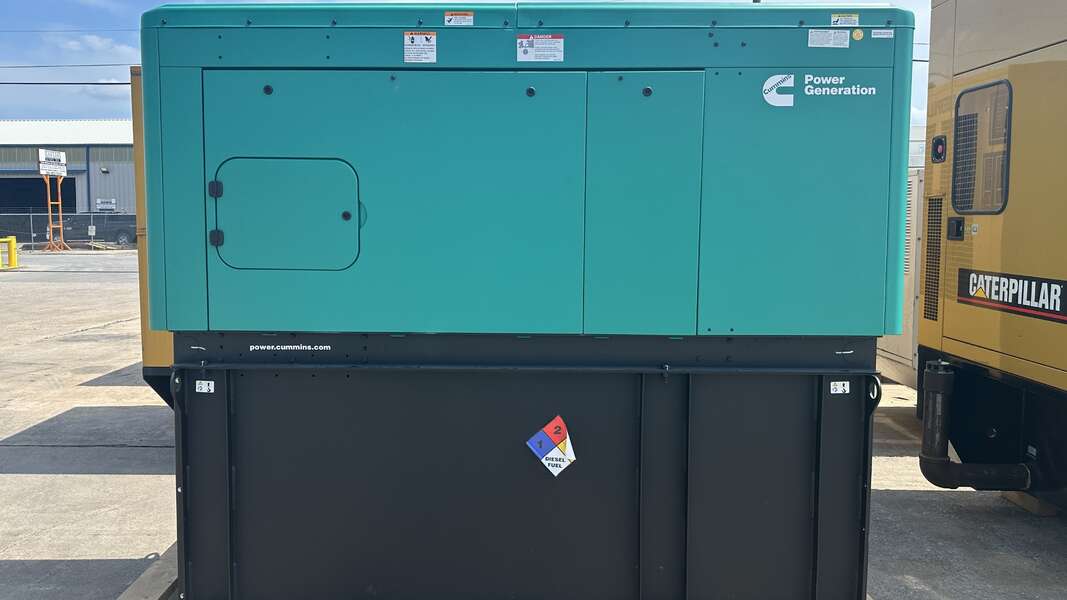

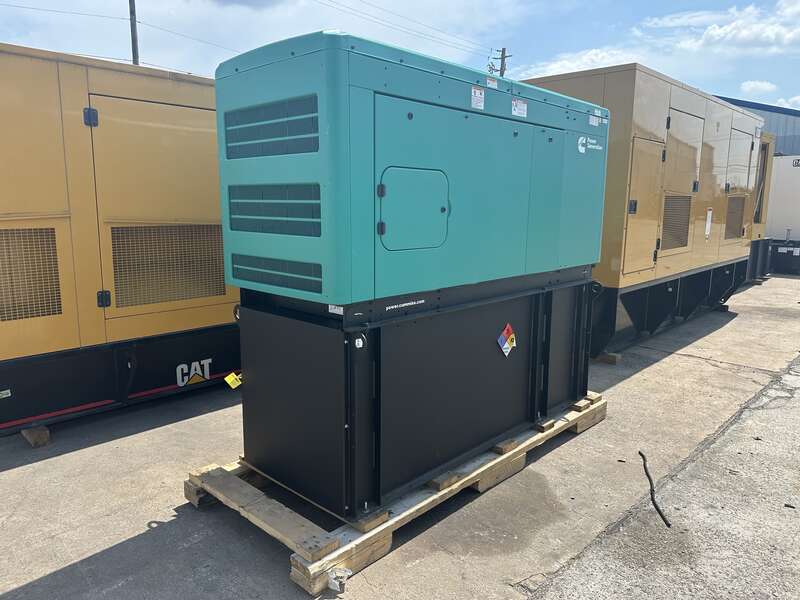

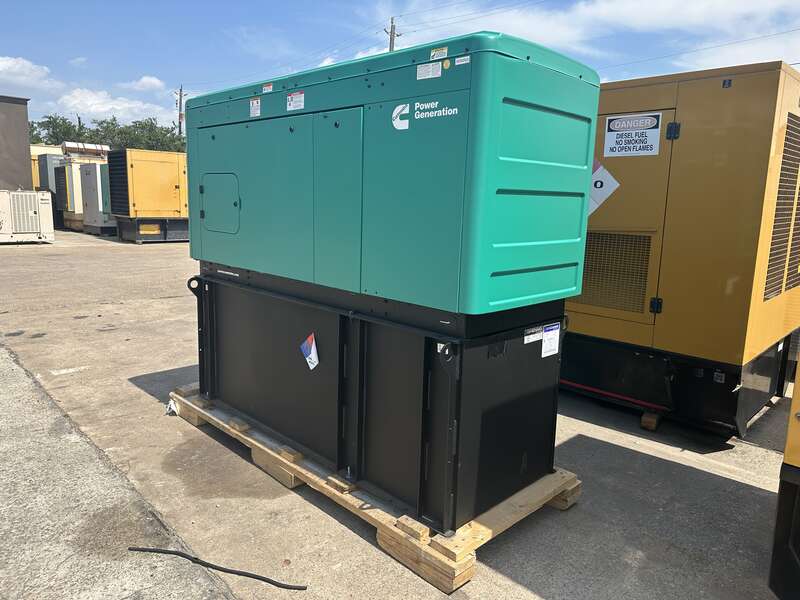

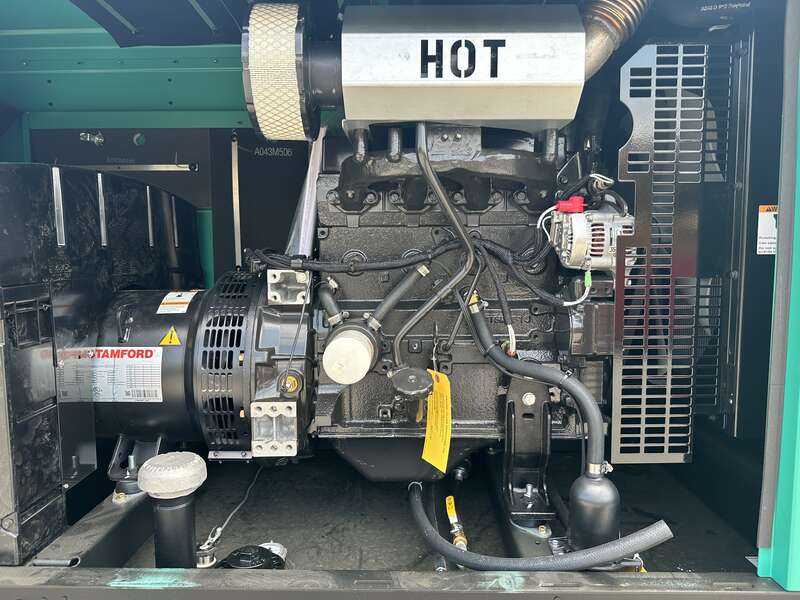

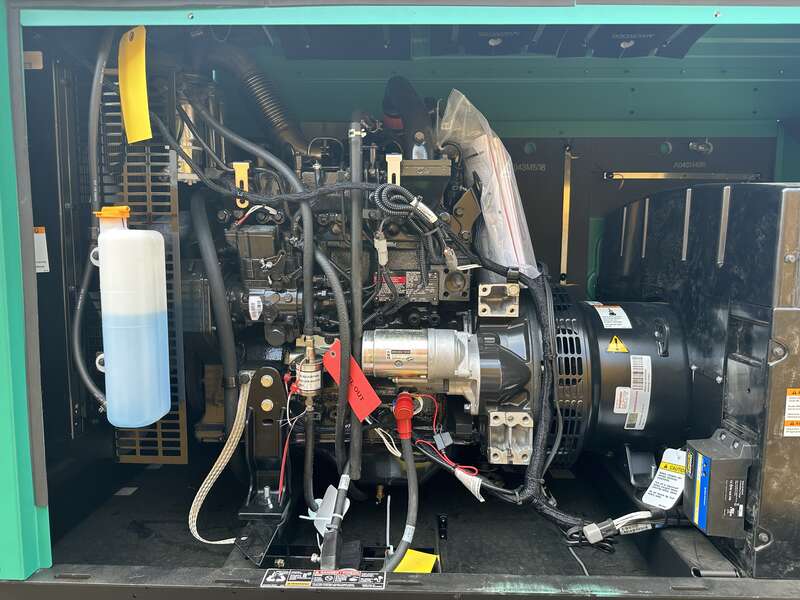

New Cummins 30 kW standby (27 kW prime) diesel generator set, model C30D6C, SN-F230237750. Cummins 4BT3.5-G5 NR3 engine rated 69 HP at 1800 RPM, SN-72073804, EPA Tier 3 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 50 Amp main-line circuit breaker. PMG/EBG excitation boost generator. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. PowerCommand 1.1 digital control panel. Battery charger. Coolant heater. Aluminum sound attenauated level 2 enclosure wind load 180 MPH. 195 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2023. Cummins 2 Yr 1000 Hr limited warranty. Overall dimensions 34W x 104L x 78H, 2793 lbs. Sound level 2 intake baffle ships loose 50W x 68L x 26H 135 lbs. FOB Waukesha, WI

Download Documents

New-Cummins-C30D6-data-sheet.pdf

New-Cummins-C30D6-spec-sheet.pdf

New-Cummins-C30D6-submittal.pdf
