• CSDG#: 3747
• PRICE: Call
• KW: 200 KW
• CONDITION: New
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins

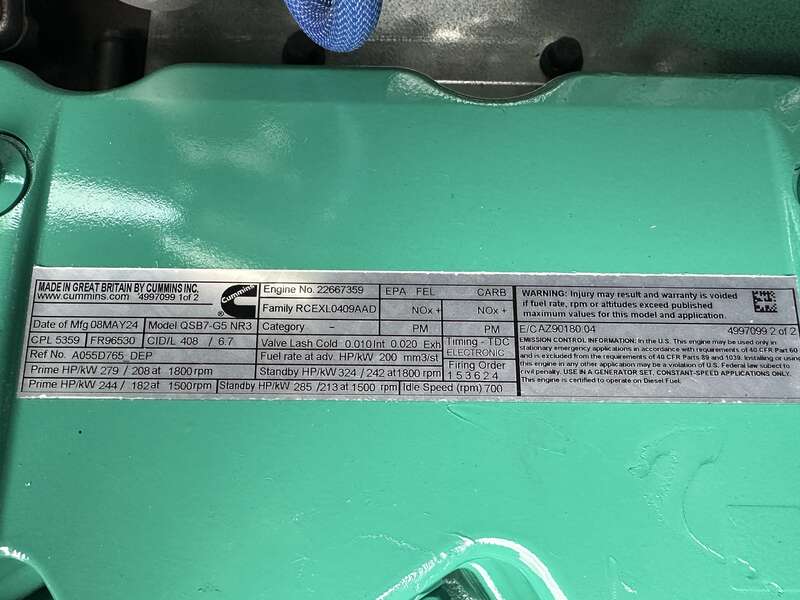

• ENGINE MODEL: QSB7-G5
• ENGINE S/N: 22667359

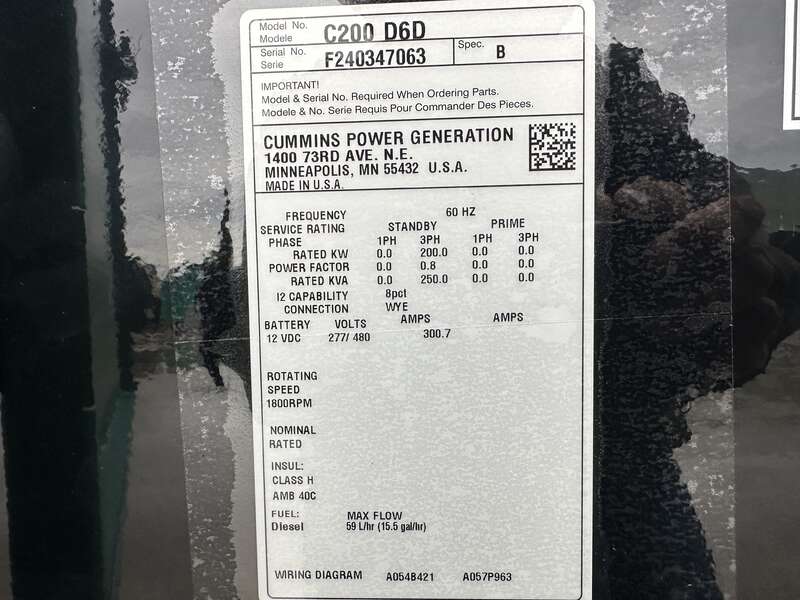

• PACKAGE MODEL: C200D6D
• PACKAGE S/N: F240347063
• HP: 324 HP
• VOLTAGE: 277/480
• ENCLOSURE: Sound attenuated enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• YEAR: 2024
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 3

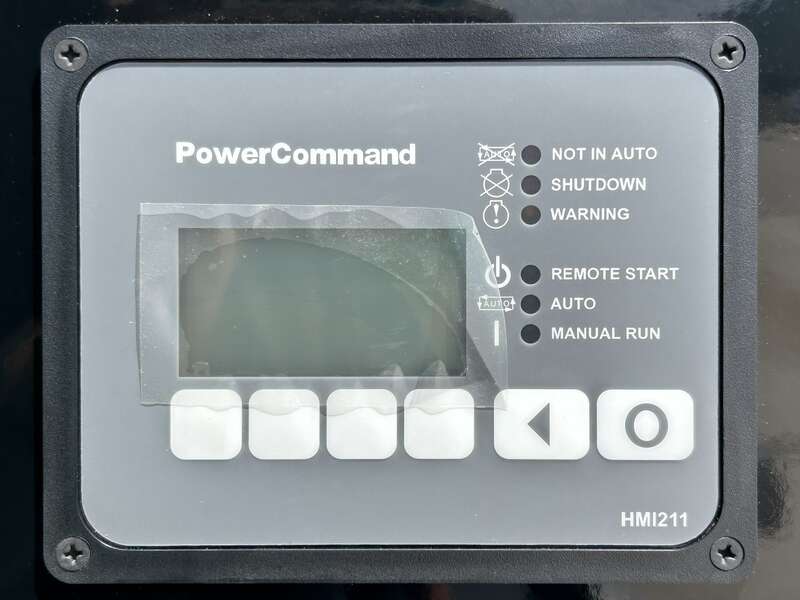

New Cummins 200 kW standby (180 kW prime) diesel generator set, model C200D6D, SN-F240347063. Cummins QSB7-G5 NR3 engine rated 324 HP at 1800 RPM, SN-22667359, EPA Tier 3 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 125-400 Amp main-line circuit breaker. PMG permanent magnet generator. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. PowerCommand 1.1 digital control panel. Battery charger. Coolant heater. Aluminum sound attenuated level 2 enclosure w/critical grade muffler, wind load 180 MPH. 351 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2024. Cummins 2 Yr 1000 Hr limited warranty. Overall dimensions 40W x 180L x 93H, 5148 lbs, ships on 60W x 193L x 7H skid. Sound level 2 intake baffles ship loose 50W x 68L x 26H, 135 lbs. FOB Waukesha, WI

Download Documents

New-Cummins-200kW-C200D6D-submittal.pdf

New-Cummins-C200D6D-data-sheet.pdf

New-Cummins-C200D6D-spec-sheet.pdf
