• CSDG#: 3762
• PRICE: Call
• KW: 1 KW
• CONDITION: New
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins
• ENGINE MODEL: QSB5-G13
• PACKAGE MODEL: C100D6C
• HP: 173 HP
• VOLTAGE: 277/480
• ENCLOSURE: Sound attenuated enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• YEAR: 2024
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 3

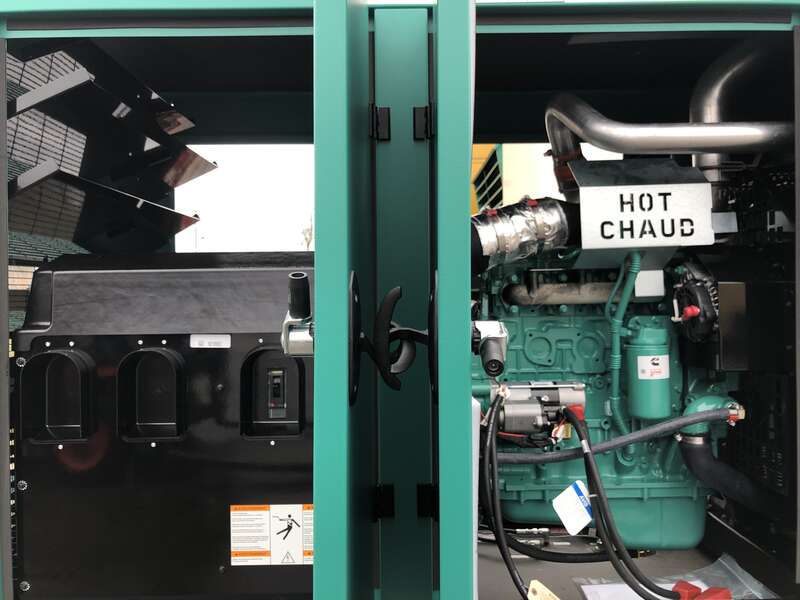

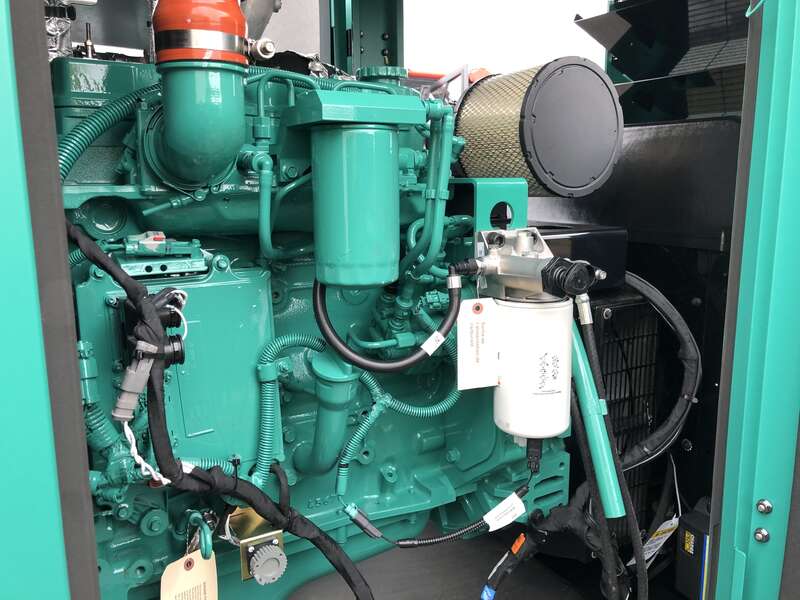

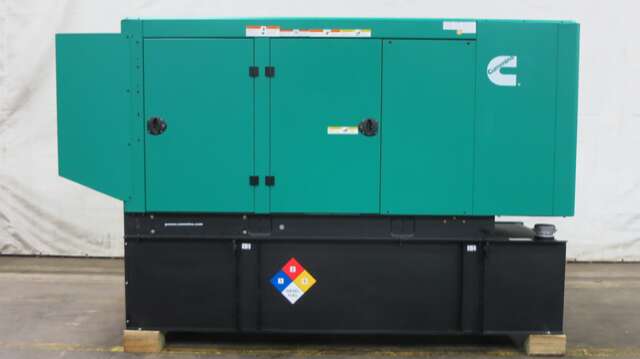

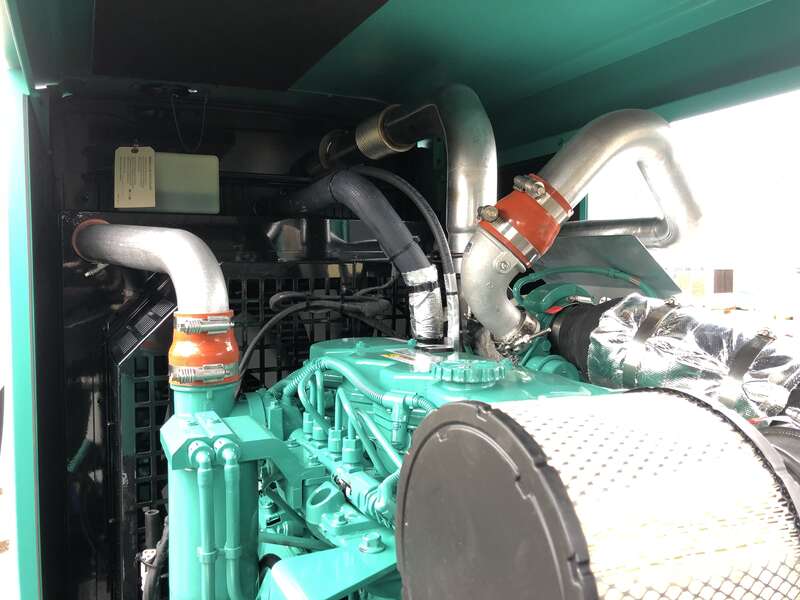

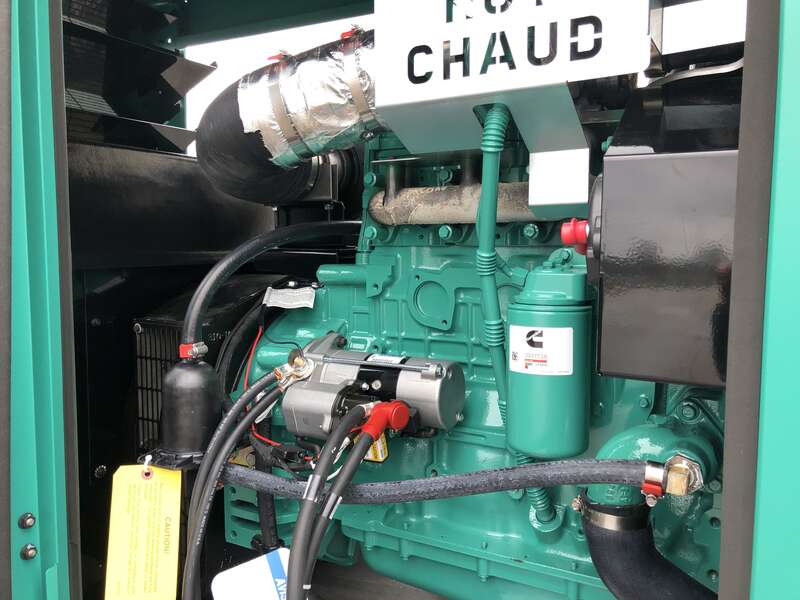

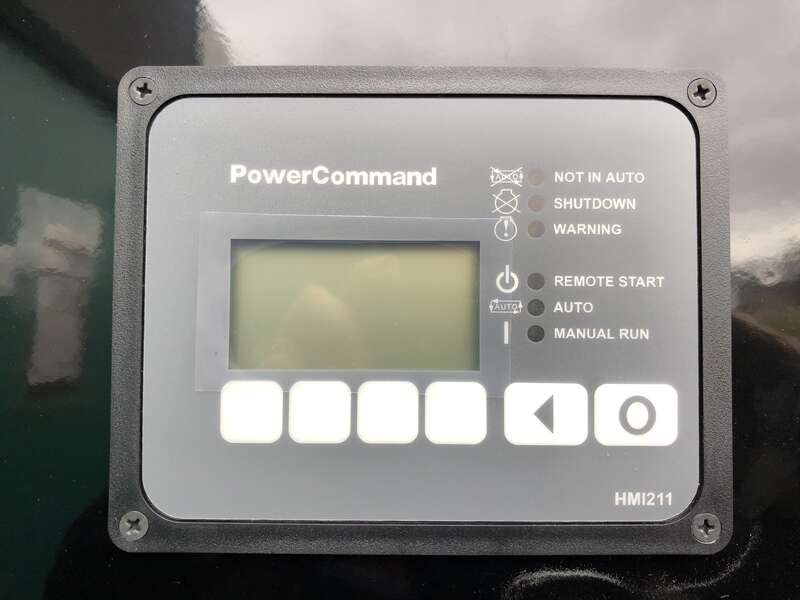

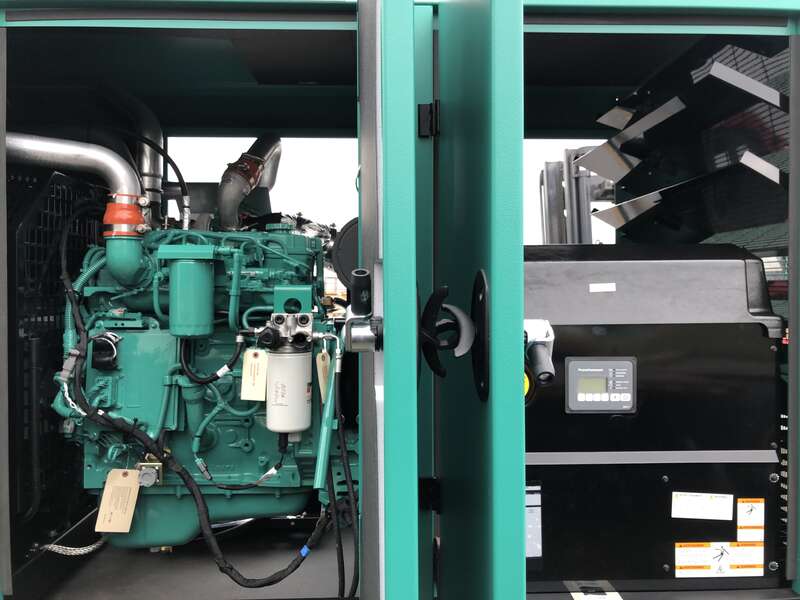

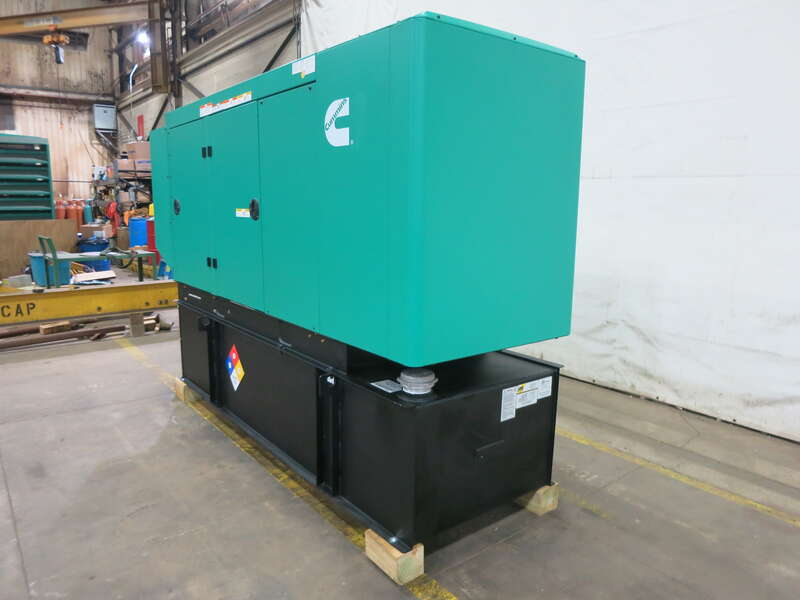

*****ETA Nov 19, 2024***** New Cummins 100 kW standby (90 kW prime) diesel generator set, model C100D6C. Cummins QSB5-G13 NR3 engine rated 173 HP at 1800 RPM, EPA Tier 3 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 150 Amp main-line circuit breaker. PMG permanent magnet generator. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. PowerCommand 1.1 digital control panel. Battery charger. Coolant heater. Aluminum sound attenauated level 2 enclosure wind load 180 MPH. 260 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2024. Cummins 2 Yr 1000 Hr limited warranty. Overall dimensions 40W x 136L x 83H, 3553 lbs. Sound level 2 intake baffle ships loose 50W x 68L x 26H 135 lbs. FOB Waukesha, WI

Download Documents

New-Cummins--100-kW-C100D6C-submittal.pdf

New-Cummins-C100D6C-data-sheet.pdf

New-Cummins-C100D6C-spec-sheet.pdf
