Used Murray 1500 kW RJG2 Steam turbine,1500 HP

  • Sold Used Murray 1500 kW RJG2 Steam turbine
  • Sold Used Murray 1500 kW RJG2 Steam turbine
  • Sold Used Murray 1500 kW RJG2 Steam turbine
  • Sold Used Murray 1500 kW RJG2 Steam turbine
  • Sold Used Murray 1500 kW RJG2 Steam turbine
  • Sold Used Murray 1500 kW RJG2 Steam turbine
  • Sold Used Murray 1500 kW RJG2 Steam turbine
  • CSDG#: 2057
  • PRICE: Call
  • CONDITION: Used
  • MANUFACTURER: Murray
  • ENGINE MANUFACTURER: Murray
  • ENGINE S/N: 1-05322A
  • HP: 1500 HP
  • VOLTAGE: 2400
  • CATEGORY: Generator Set
  • SUB-CATEGORY: Steam turbine
  • YEAR: 1994
  • LOCATION: Waukesha, WI
  • FREQUENCY: 60 Hz

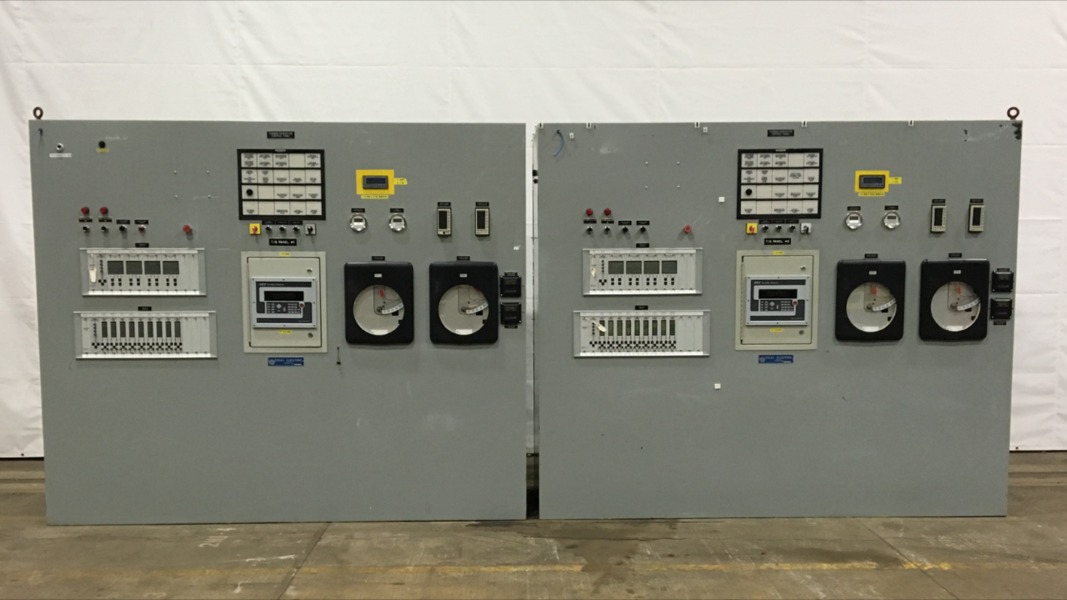

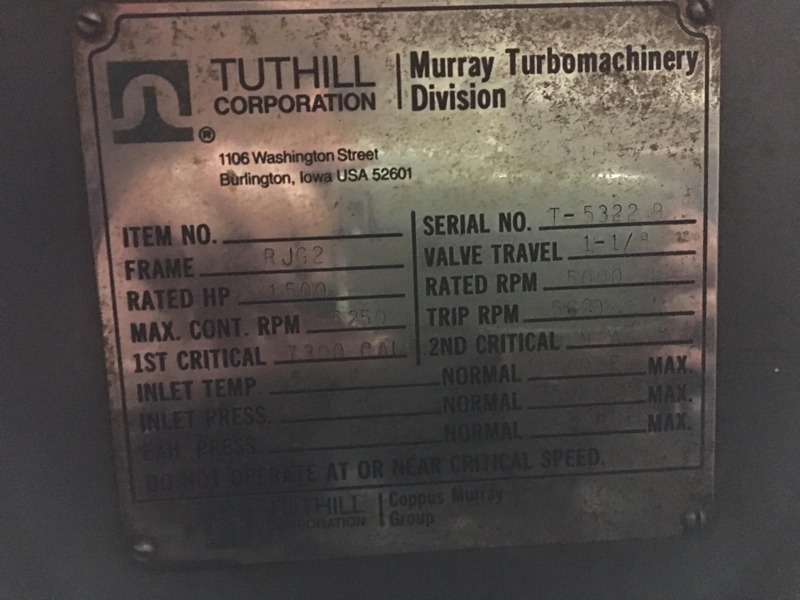

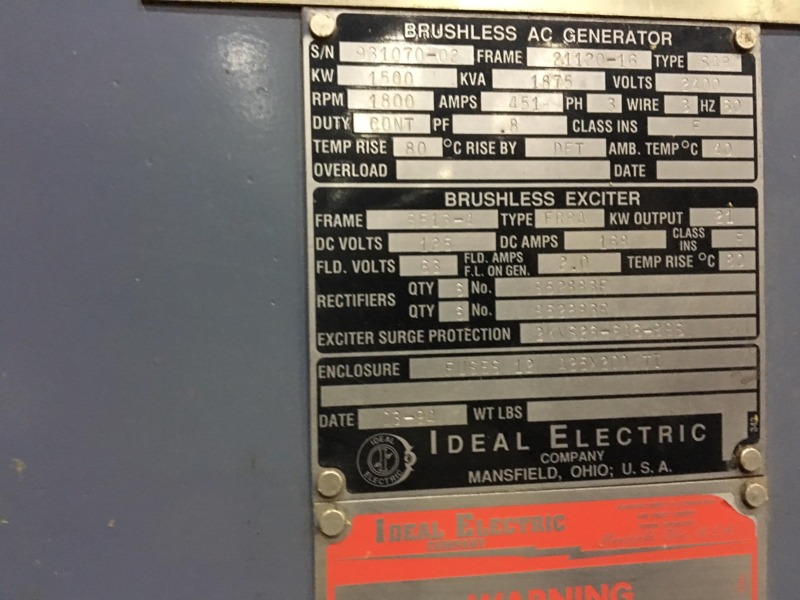

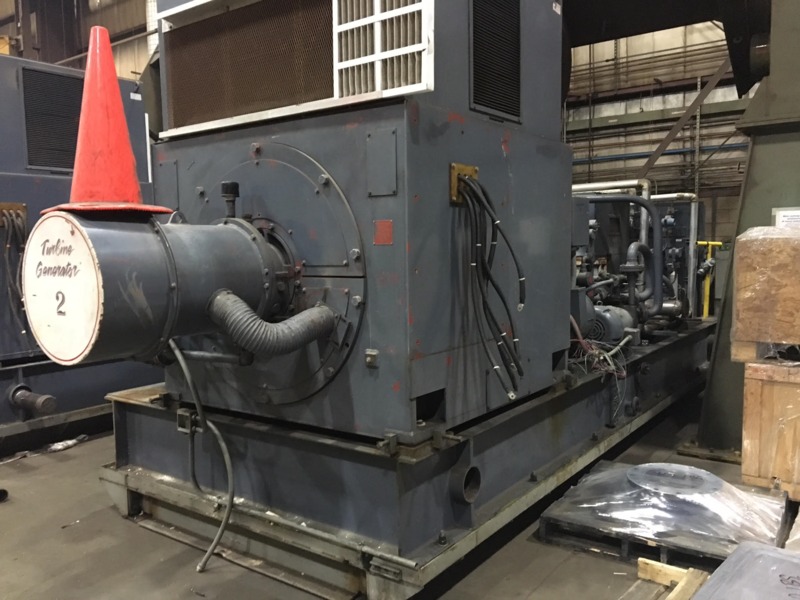

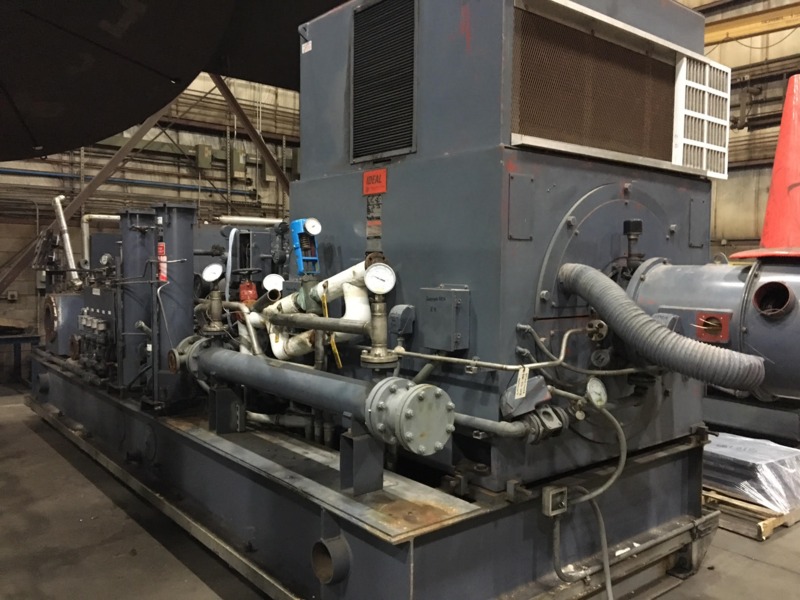

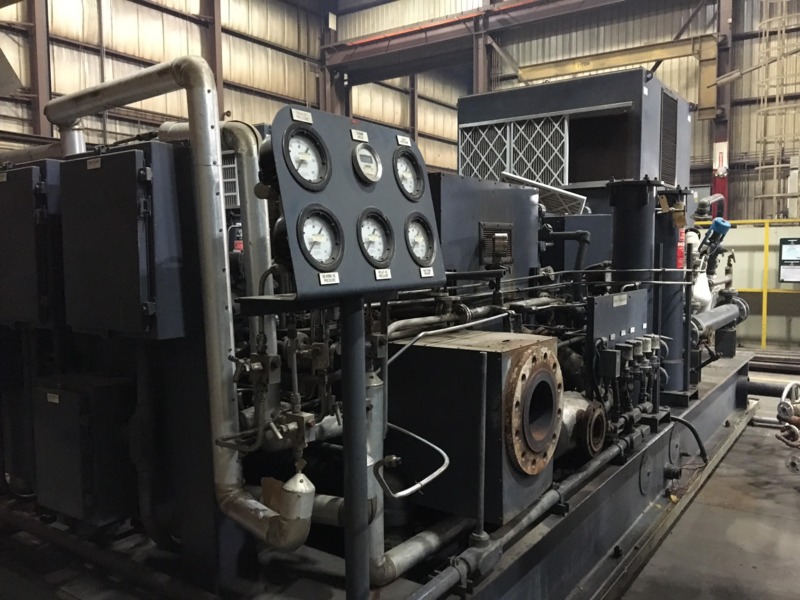

Murray 1500 kW continuous rated steam turbine generator set, model RJG2, SN-1-05322A. Tuthill (Murray Turbomachinery Div) turbine rated 1500 HP at 5000 RPM, inlet temp 560 deg F, inlet pressure 350 PSI, exhaust pressure 125 / 140 PSI. Ideal Electric generator frame 21120 - 26, SN-931070-01, type SAB, 1500 kW, 3/60/2400V cont duty. Turbine and generator skid dimensions 96W x 244L x 122H, control panel 36D x 108L x 90H, 47,000 Lbs. FOB Waukesha, WI

Download Documents

Murray_1500_KW_STG_2.pdf
