• CSDG#: 2902
• PRICE: Call
• KW: 100 KW
• CONDITION: Used
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins
• ENGINE MODEL: QSB7-G3 NR3
• ENGINE S/N: 46895995
• PACKAGE MODEL: DSGAA
• PACKAGE S/N: F080189268
• HP: 250 HP
• VOLTAGE: 277/480
• ENCLOSURE: Sound attenuated enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• HOURS: 66
• YEAR: 2008
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 3

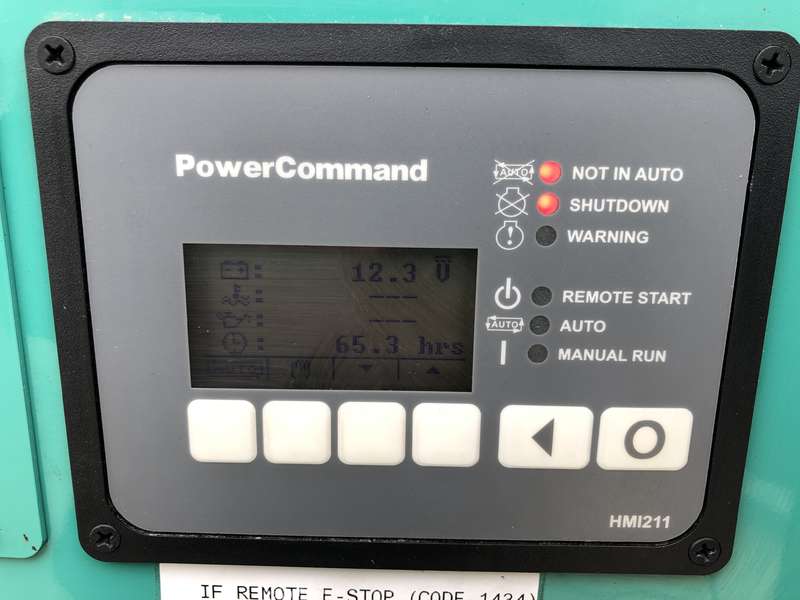

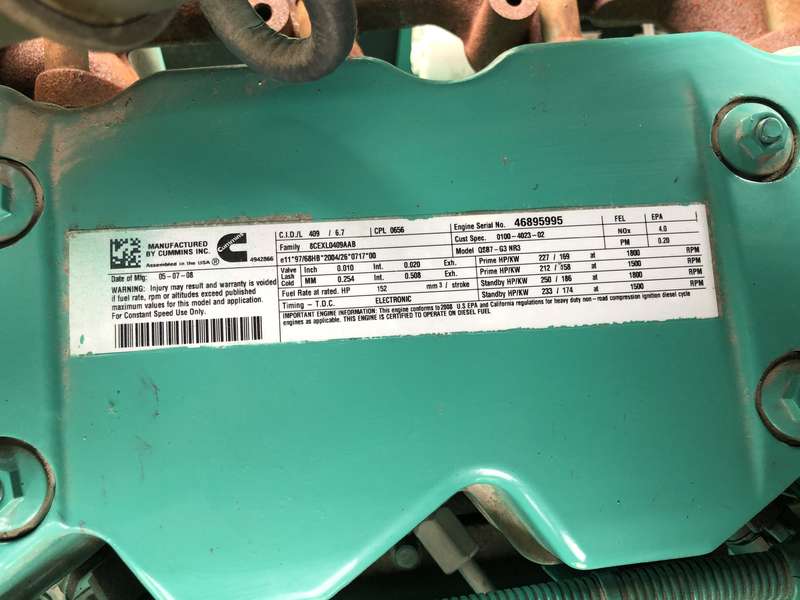

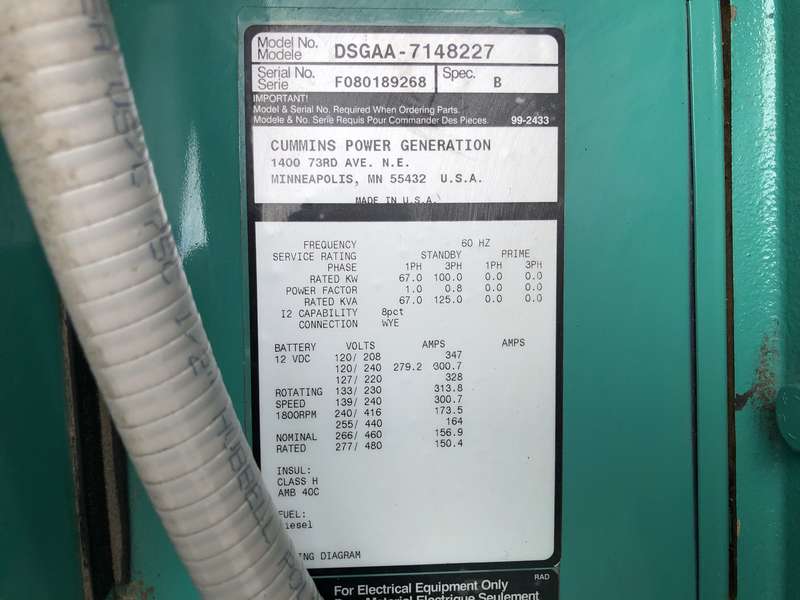

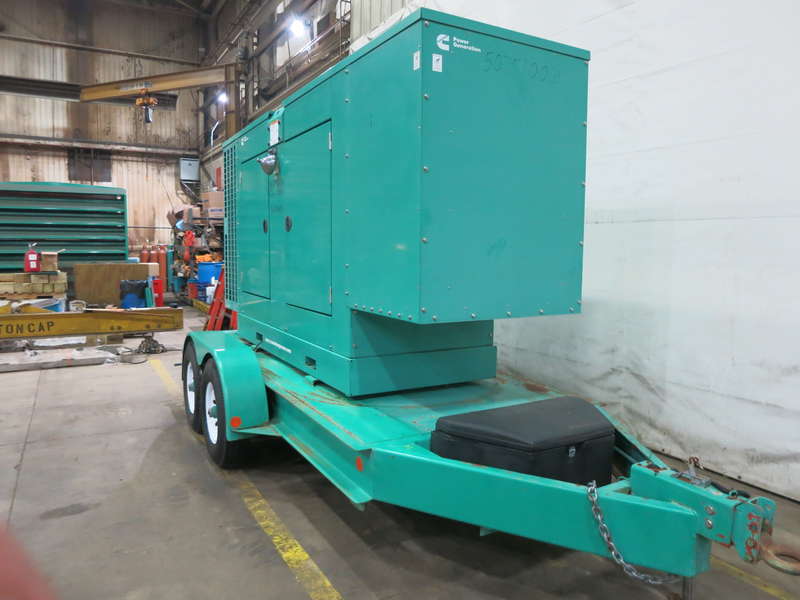

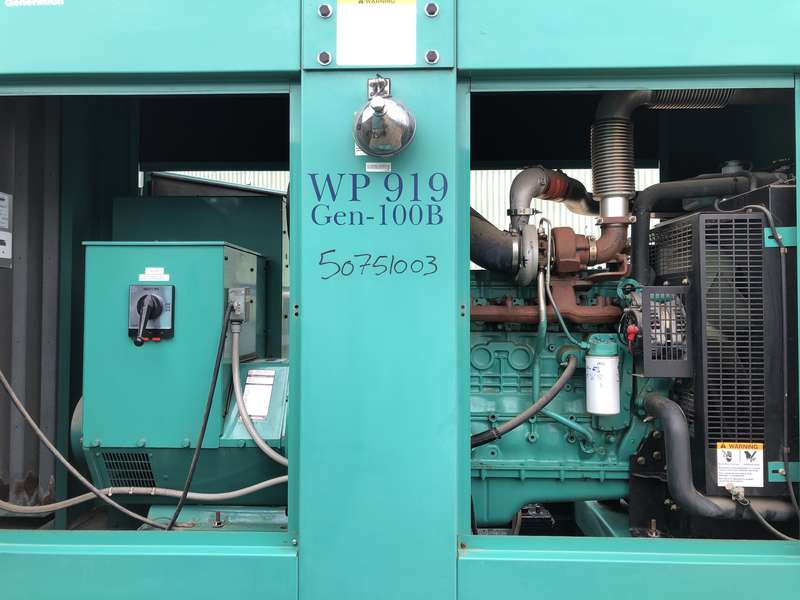

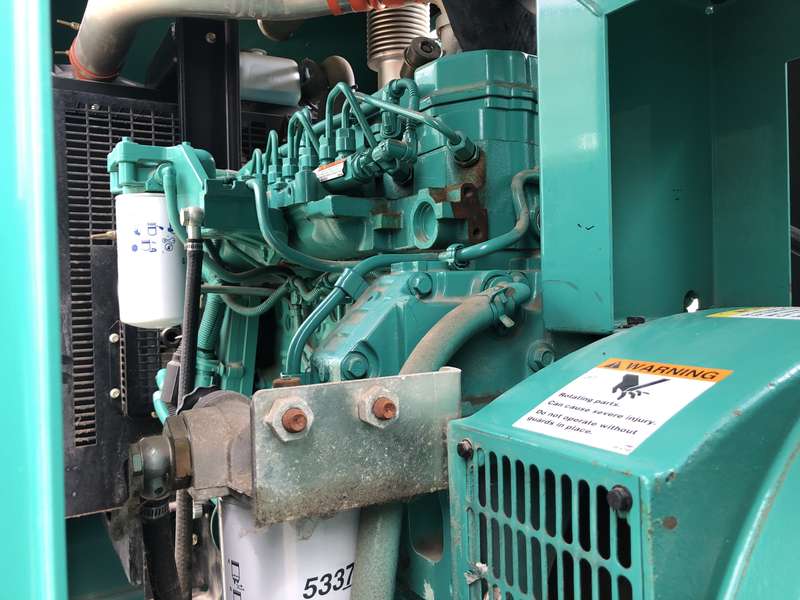

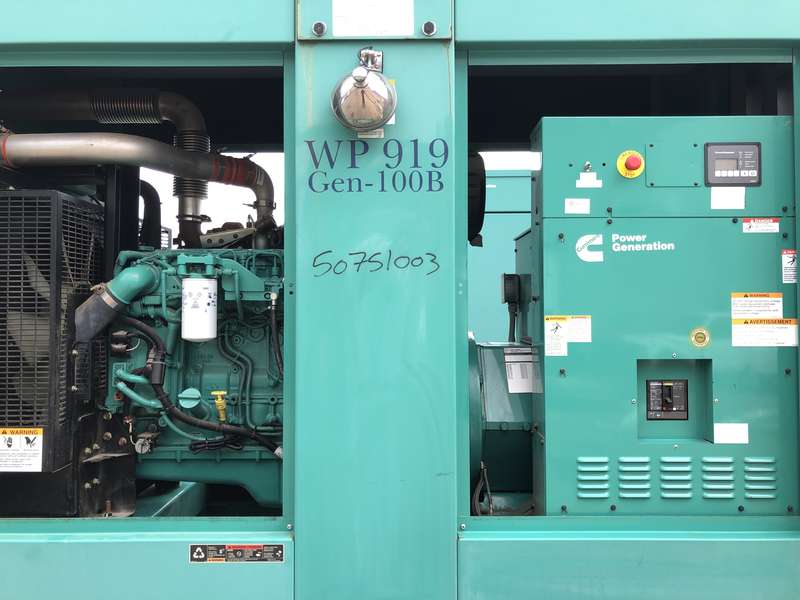

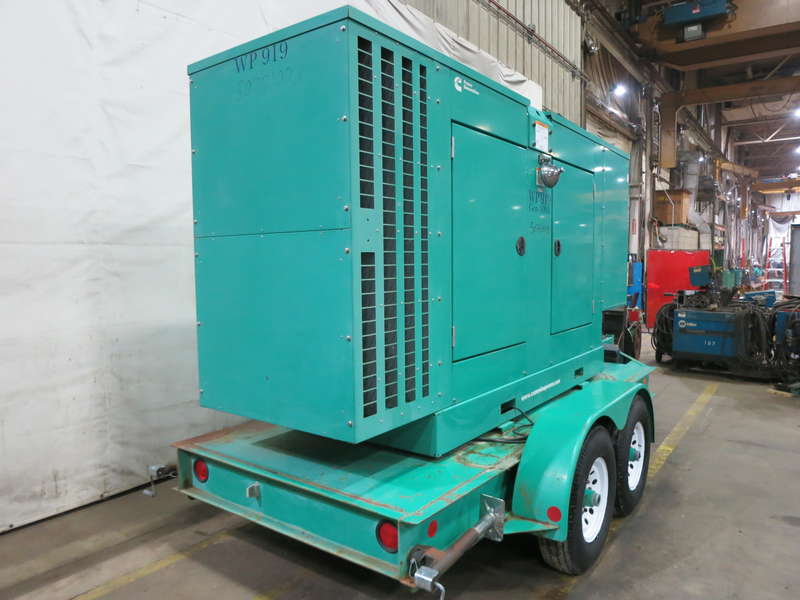

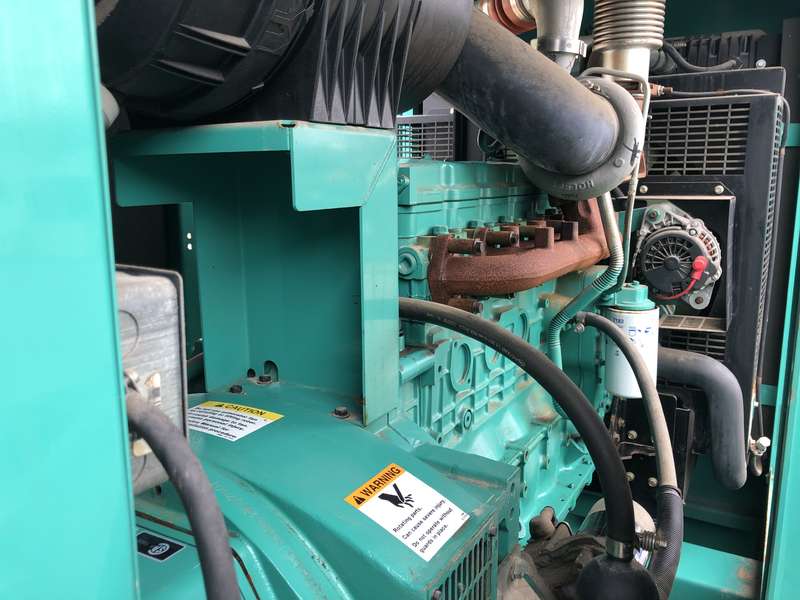

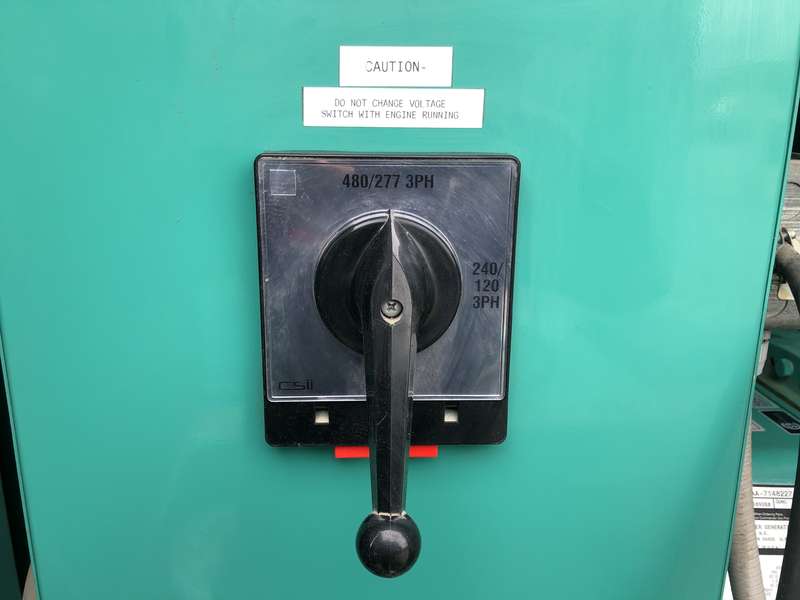

Cummins 100 kW standby (90 kW prime) portable / trailered diesel generator set model DSGAA, SN-F080189268. Cummins QSB7-G3 NR3 engine rated 250 HP at 1800 RPM, SN-46895995, EPA Tier 3 emissions. 3/60/277/480V or 3/60/120/240V thru 2 position voltage selector switch. 200 Amp adjustable main-line circuit breaker. Oversized generator end rated 143 kW. PowerCommand 1.1 digital control panel. Battery charger. Coolant heater. UL 2200 listed package. Sound attenuated enclosure. 350 gallon sub-base fuel tank. Mounted on a tandem axle trailer. 66 Hrs. Year 2008. Overall dimensions 86W x 219L x 105H, 9000 lbs. Passed load test and PM serviced 4/12/2021. FOB Waukesha, WI

Download Documents

Cummins-DSGAA-spec-sheet.pdf

Cumminsr-DSGAA-100-kW-data-sheet.pdf

Cummins-DSGAA-QSB7-G3-NR3-engine-SN-46895995-load-test-and-checklist-inspection.pdf
