• CSDG#: 2848
• PRICE: Call
• KW: 230 KW
• CONDITION: New
• MANUFACTURER: Cummins
• ENGINE MANUFACTURER: Cummins
• ENGINE MODEL: QSL9-G2 NR3
• ENGINE S/N: 74788964
• PACKAGE MODEL: DSHAD
• PACKAGE S/N: F210933780
• HP: 364 HP
• VOLTAGE: 120/240
• ENCLOSURE: Weather enclosure
• CATEGORY: Generator Set
• SUB-CATEGORY: Diesel Generator
• YEAR: 2021
• LOCATION: Waukesha, WI
• EMISSIONS: EPA Tier 3

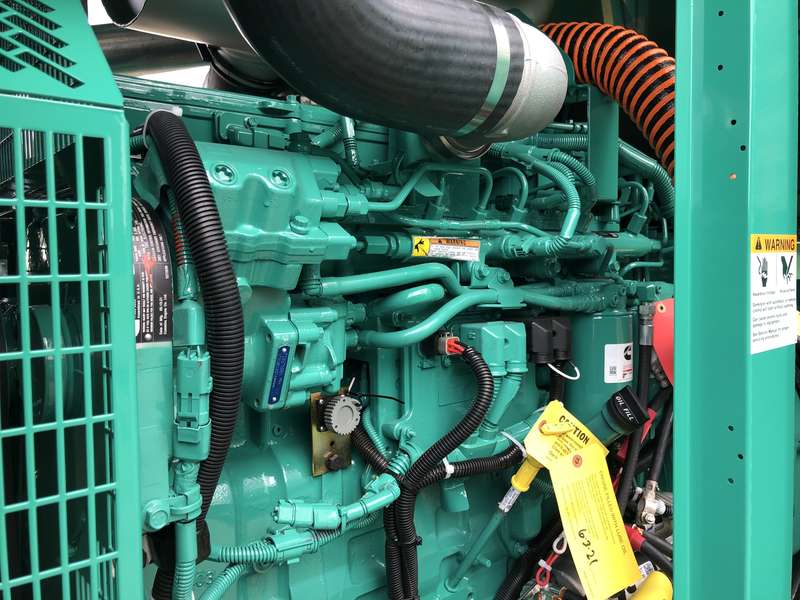

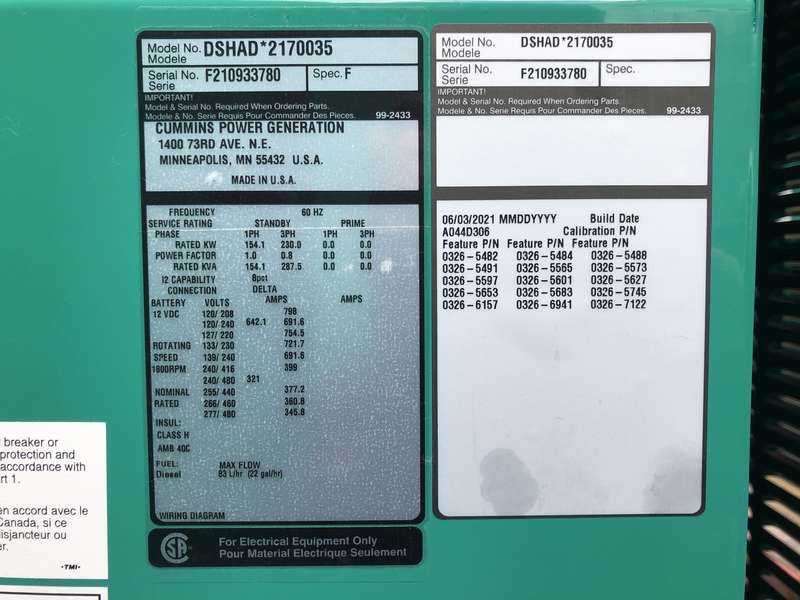

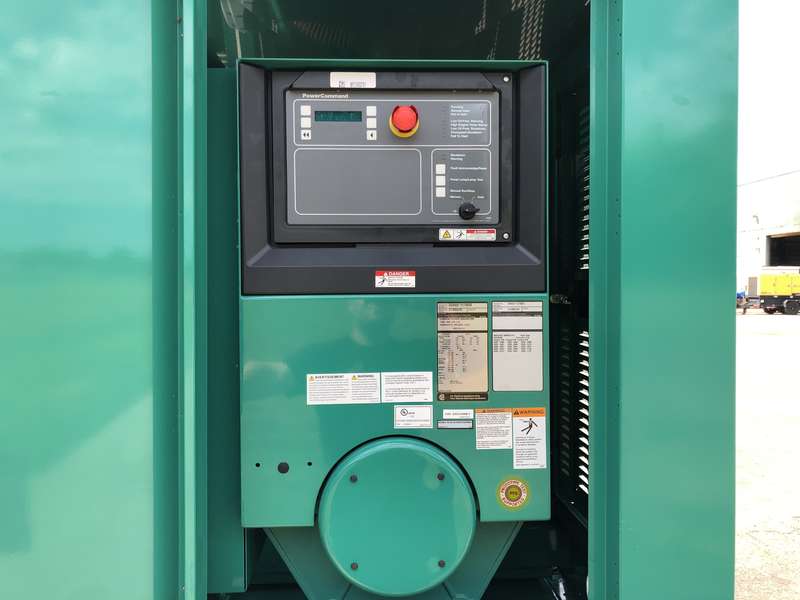

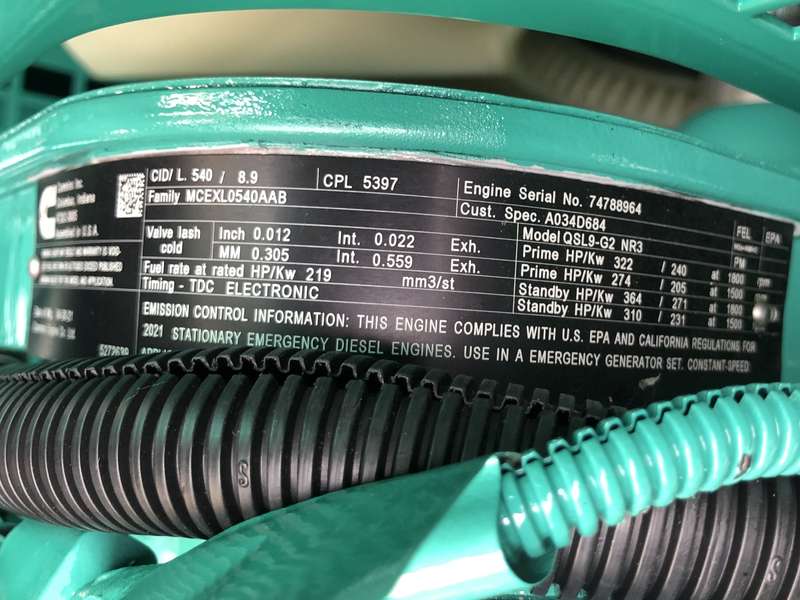

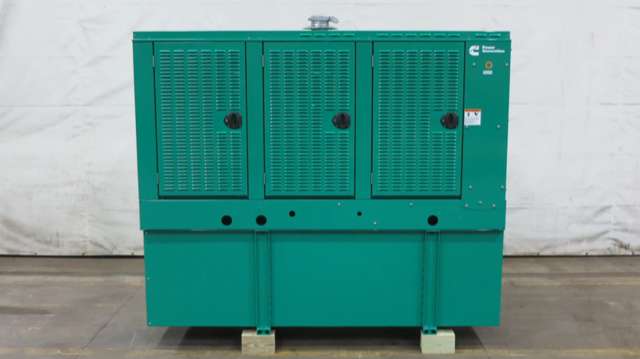

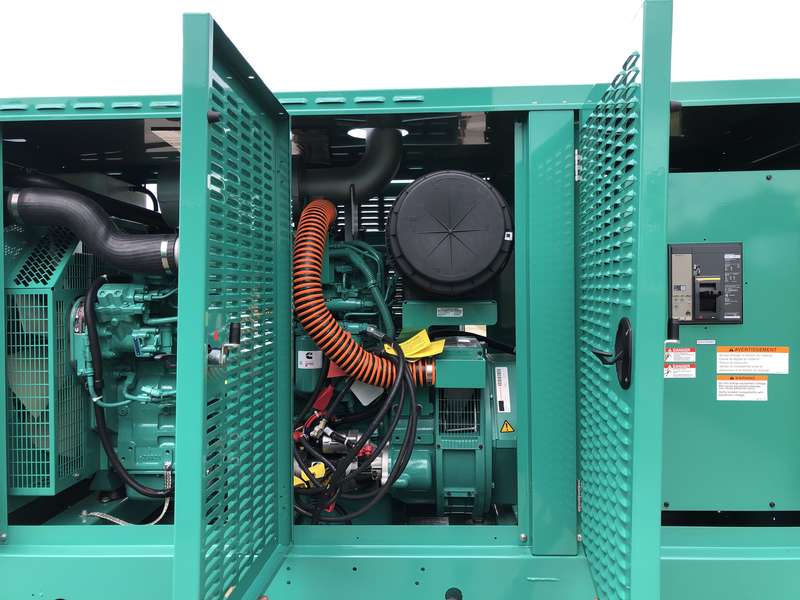

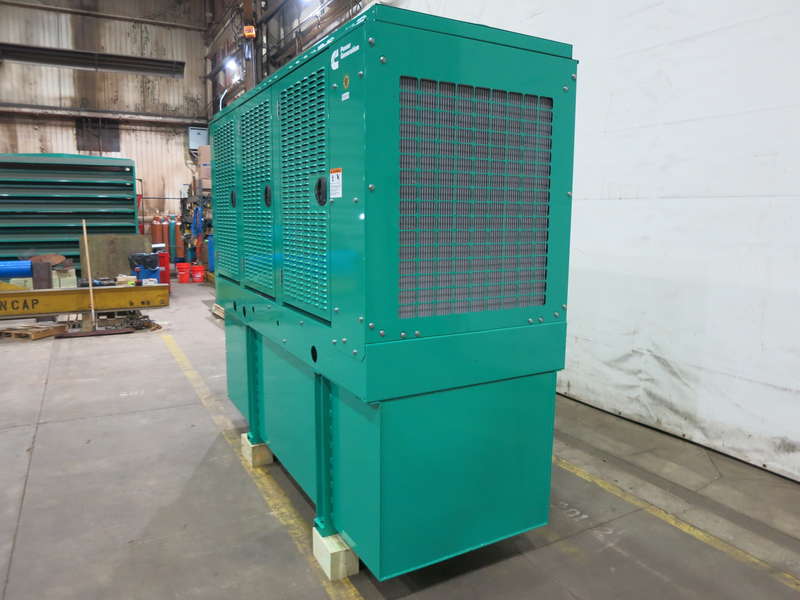

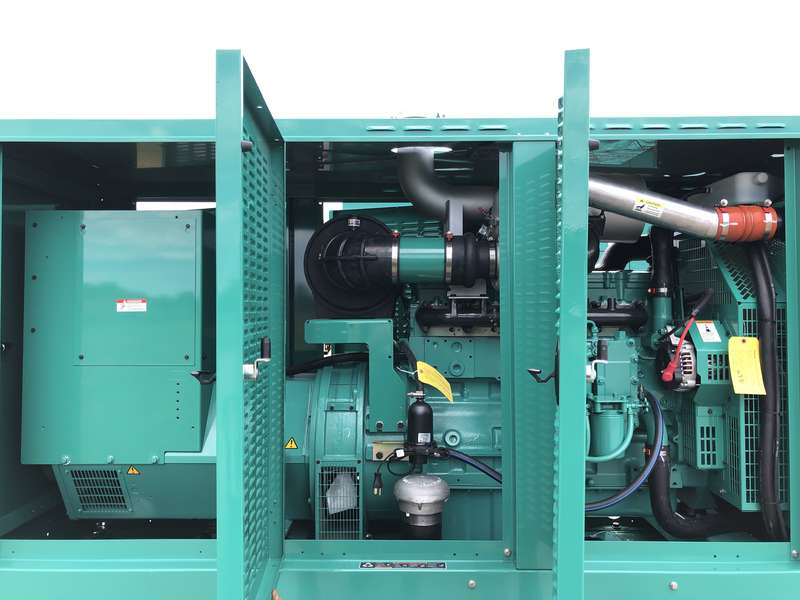

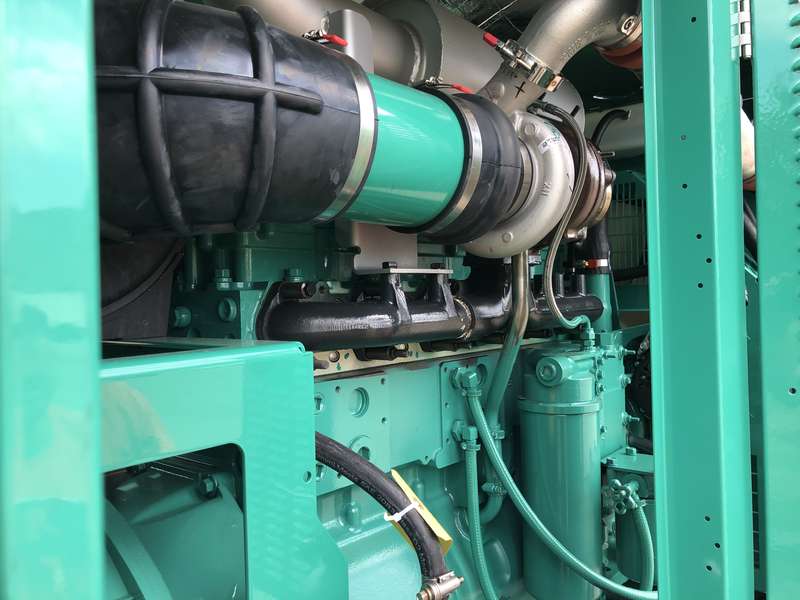

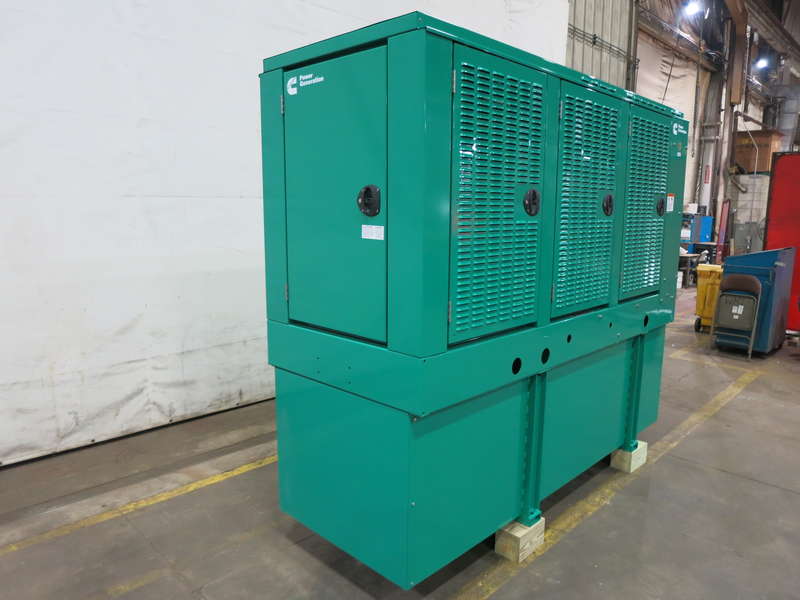

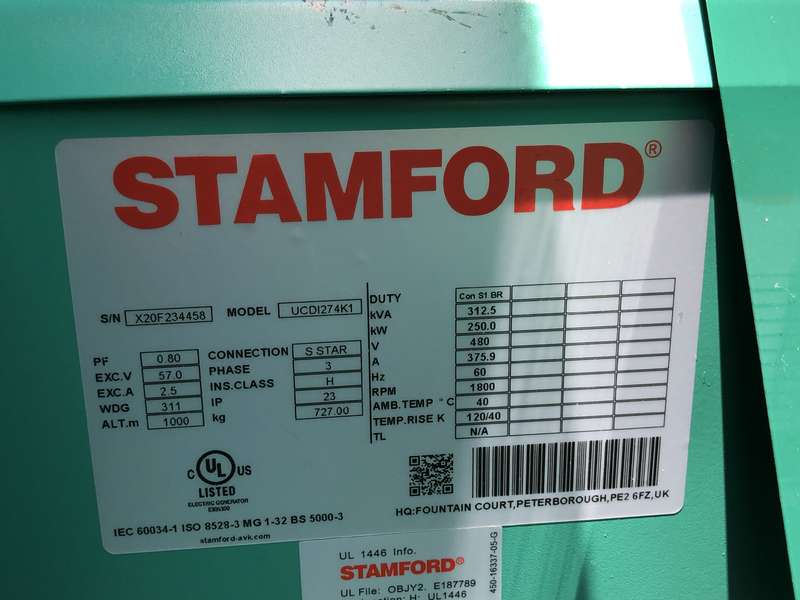

New Cummins 230 kW standby (209 kW prime) diesel generator set, model DSHAD, SN-F210933780. Cummins QSL9-G2 NR3 engine rated 364 HP at 1800 RPM, SN-74788964, EPA Tier 3 emissions. 3/60/120/240V, 12 lead reconnectable to other voltages. 800 Amp adjustable main-line circuit breaker. PMG permanent magnet generator. Oversized generator end rated 250 kW. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. EnerGenius battery charger 10 Amp, ships loose. Coolant heater 208/240/480V. PowerCommand 2100 digital control panel. Weather enclosure. 336 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2021. Cummins 2 Yr 1000 Hr limited warranty. Overall dimensions 40W x 105L x 88H, 4811 lbs, ships on skid 45W x 116L x 6H. FOB Waukesha, WI

Download Documents

Cummins-DSHAD-data-sheet.pdf

Cummins-DSHAD-spec-sheet.pdf

Cummins-230-kW-DSHAD-enclosure-spec-sheet.pdf

Cummins-DSHAD-230kW-Submittal.pdf
